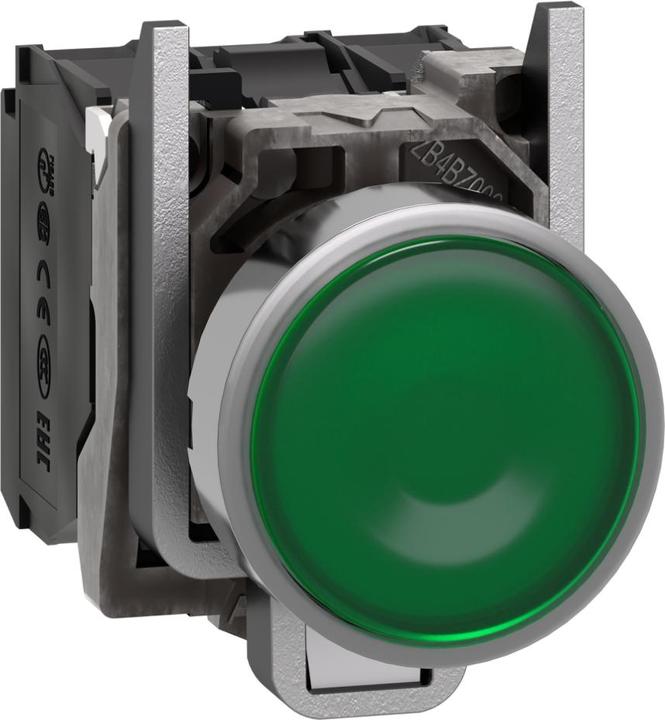

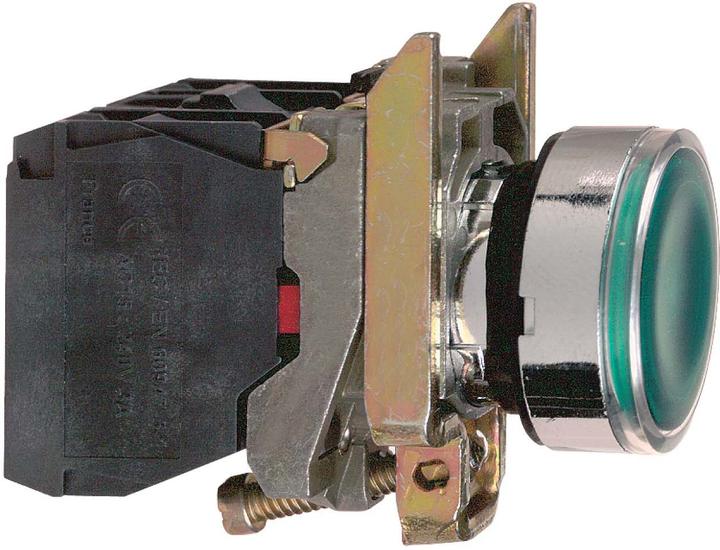

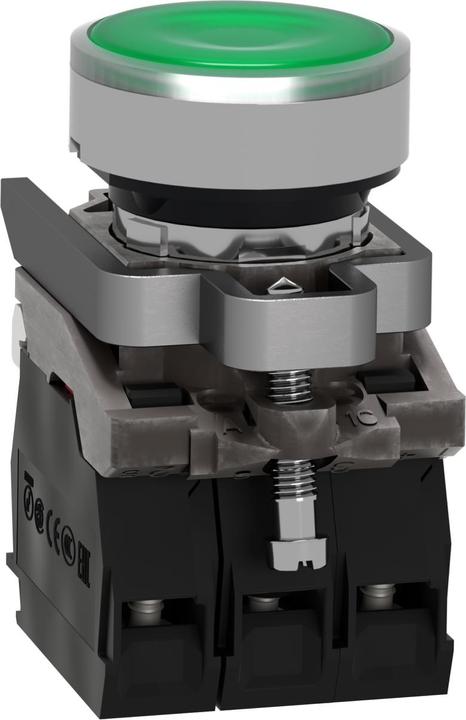

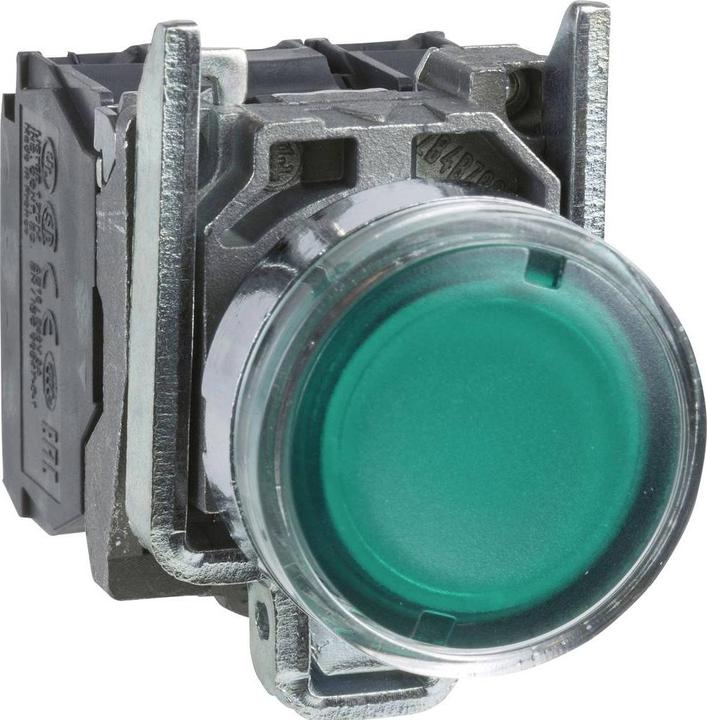

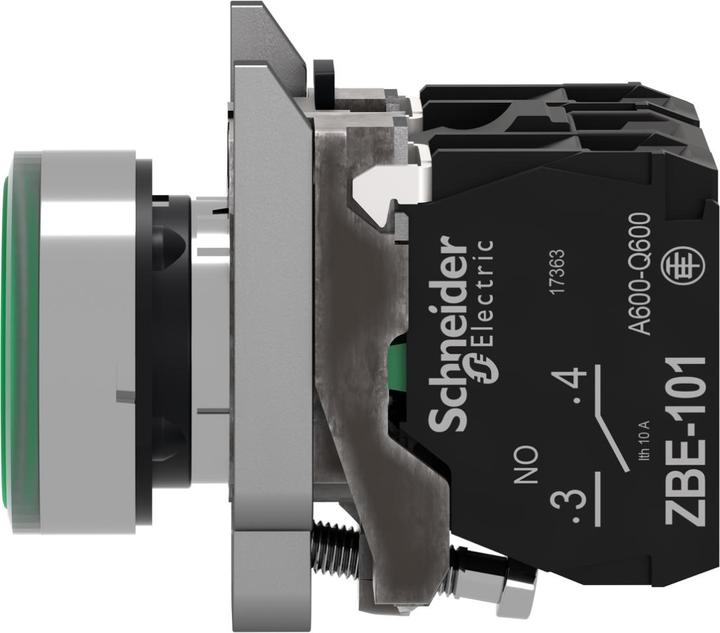

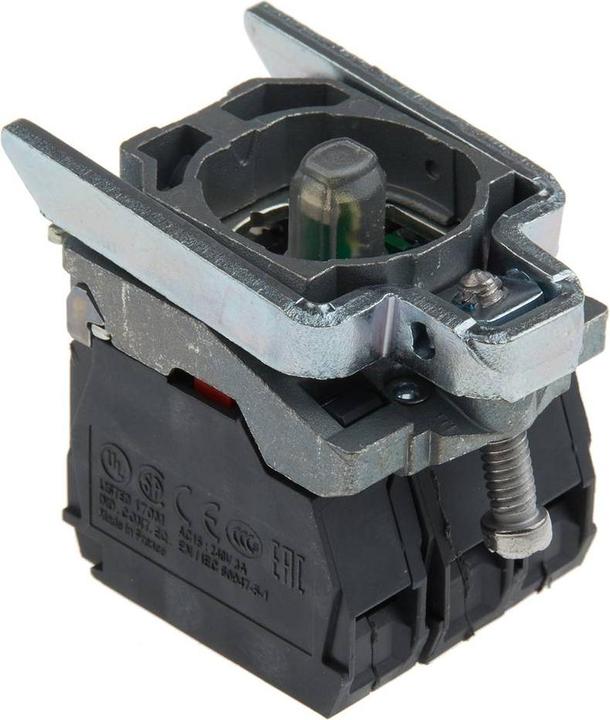

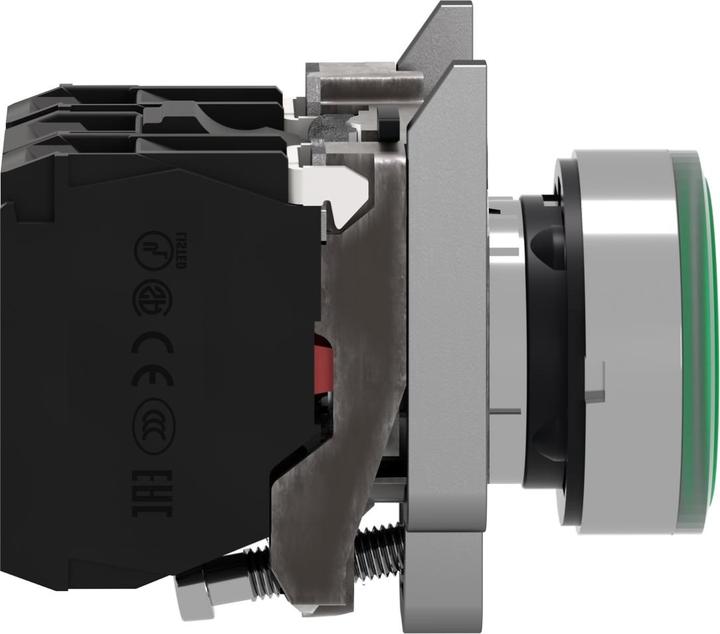

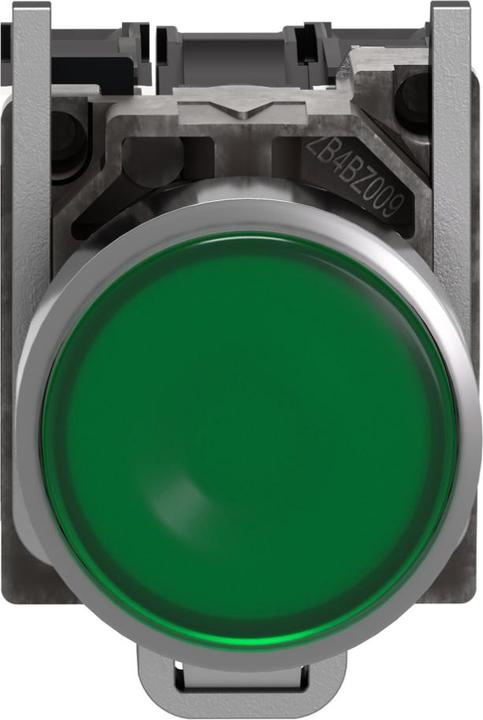

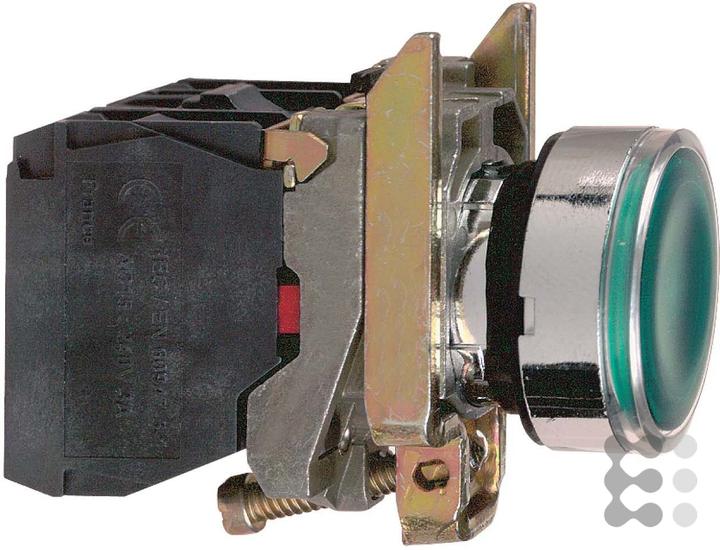

Schneider Electric Illuminated pushbutton 1NC 1S green

Schneider Electric Illuminated Push Button XB4BW33B5

Manufacturer: Schneider Electric
Description: Illuminated push button 1S1Ö gn LED-M. 24V
Type: XB4BW33B5
Number of command points: 1
Button shape: flat
Button color: green
Transparent: yes
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: yes
Latch function: no
Momentary: yes
Lamp supply voltage: 24 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1

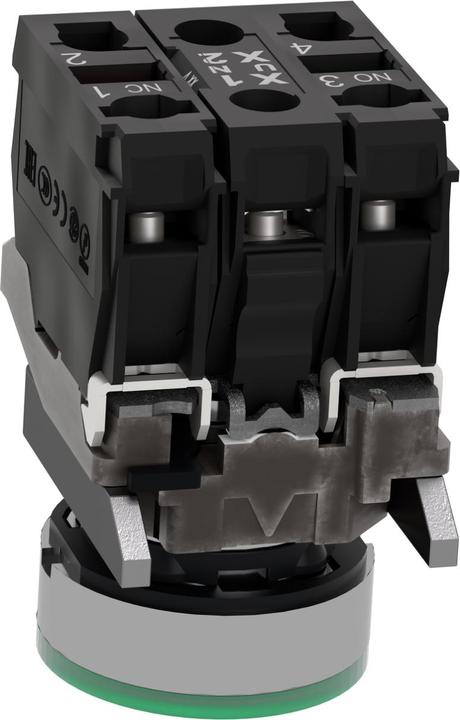

Electrical connection type: screw connection
With front ring: yes
Material of front ring: metal
Front ring color: chrome
Protection class (IP): IP66
Protection class (NEMA): 4X

The Harmony XB4 series made of metal offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop buttons. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and they can optionally be adapted for 30 mm installation dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideally suited for most applications in industry and buildings.

This illuminated push button in green features a universal LED and requires a supply voltage of 24 V ACDC. The button has 1 normally closed contact and 1 normally open contact. Installed in a 22 mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
