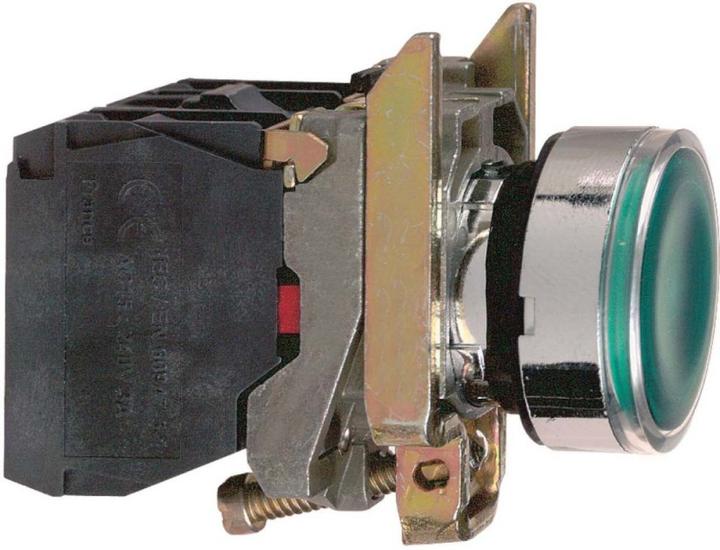

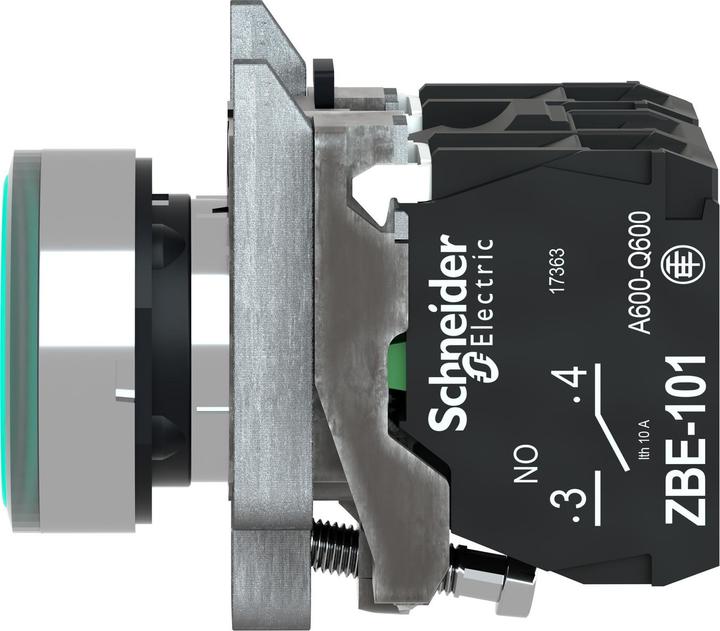

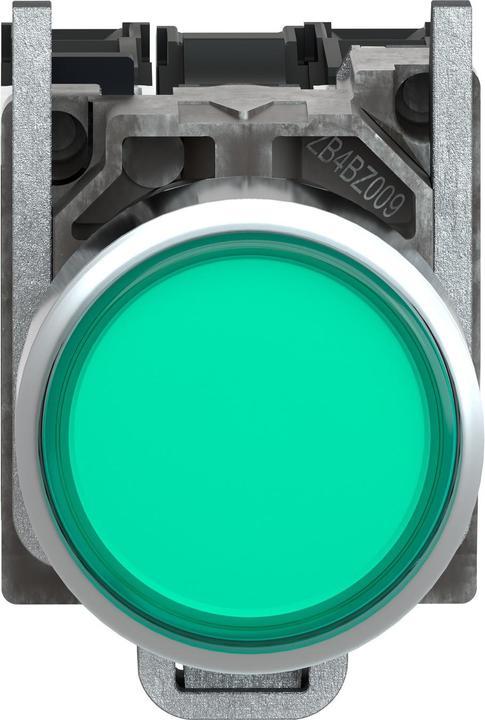

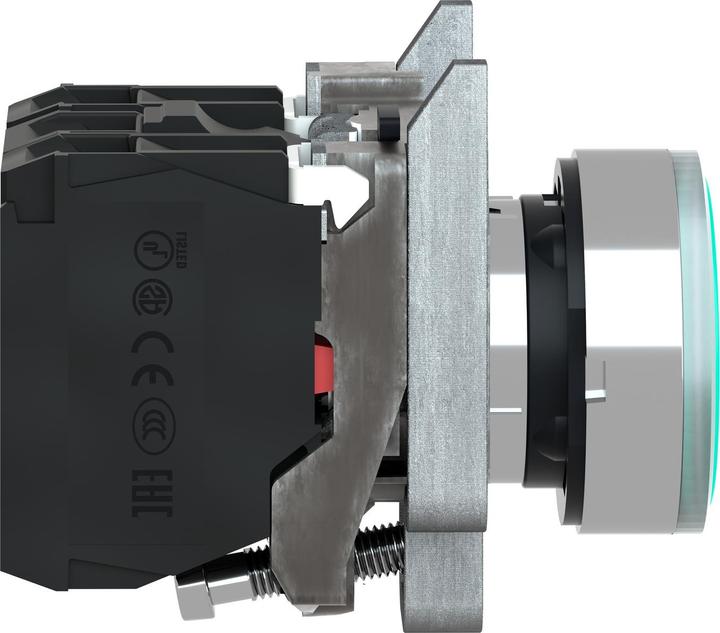

Schneider Electric Illuminated pushbutton 1NC 1S green

Schneider Electric Illuminated Push Button XB4BW3365

Manufacturer: Schneider Electric
Designation: Illuminated Push Button 1S1Ö gn BA9S
Type: XB4BW3365
Number of Command Positions: 1
Button Shape: Flat
Button Color: Green
Lens Shape: Round
Hole Diameter: 22.5 mm
Suitable for Lighting: Yes
Latch Function: No
Momentary: Yes
Lamp Supply Voltage: 250 V
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome
Protection Class (IP): IP66
Protection Class (NEMA): Other

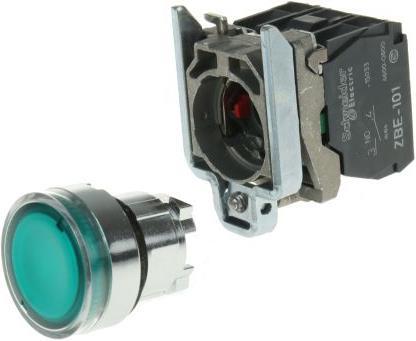

The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings.

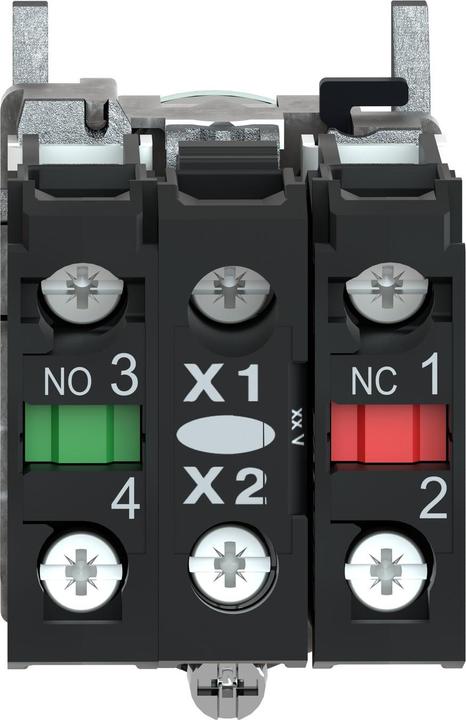

This illuminated push button in green includes a BA9s incandescent lamp and requires a supply voltage of up to 250V. The button features 1 normally closed contact and 1 normally open contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
