Schneider Electric Front element

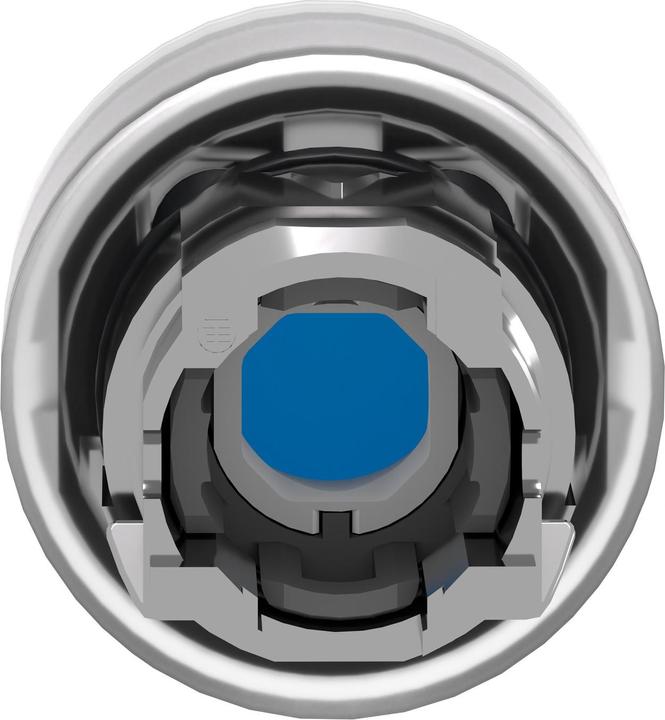

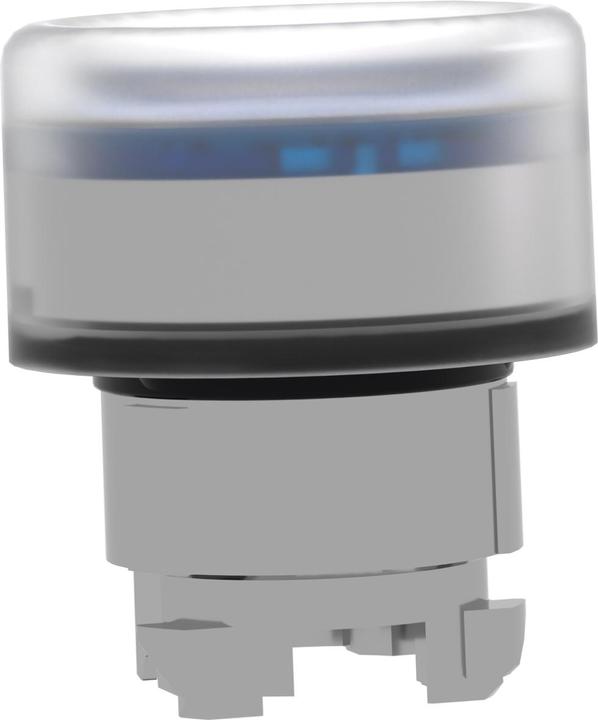

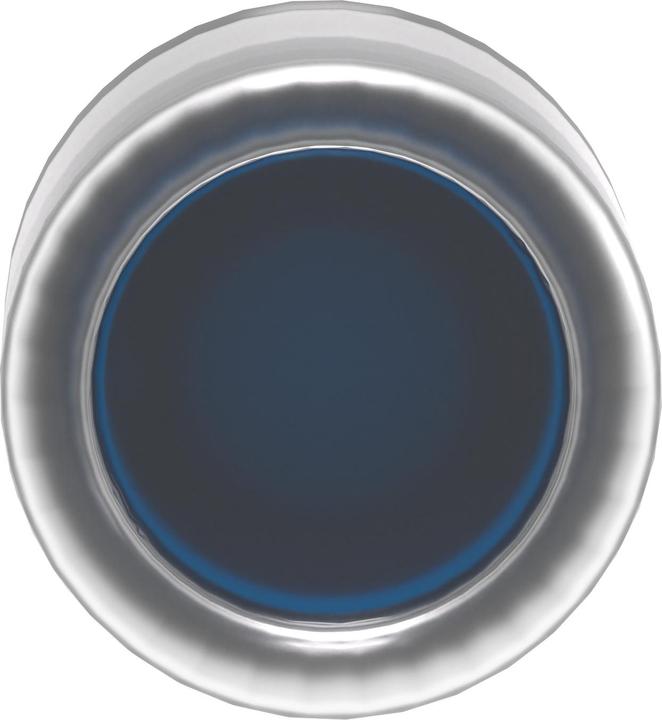

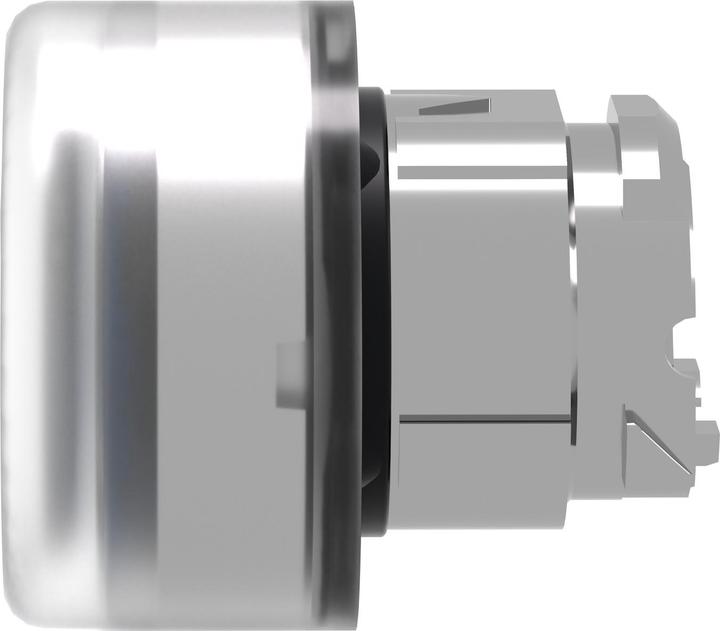

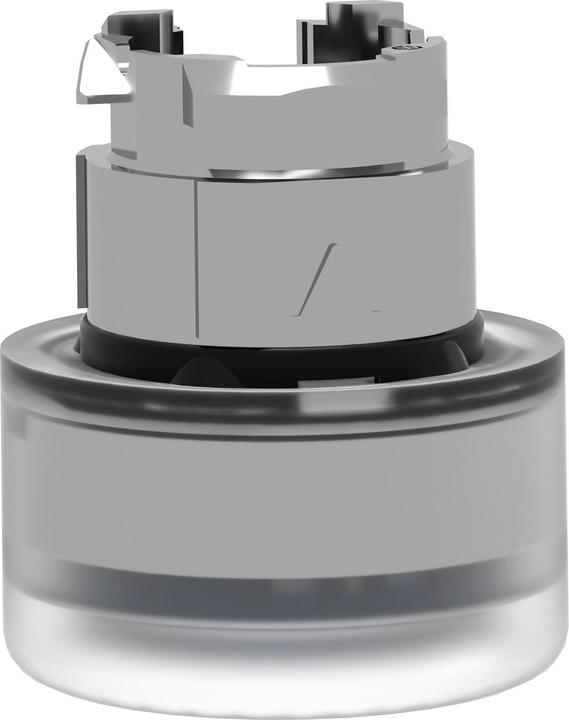

Schneider Electric Front Element Push Button ZB4BP68

Manufacturer: Schneider Electric

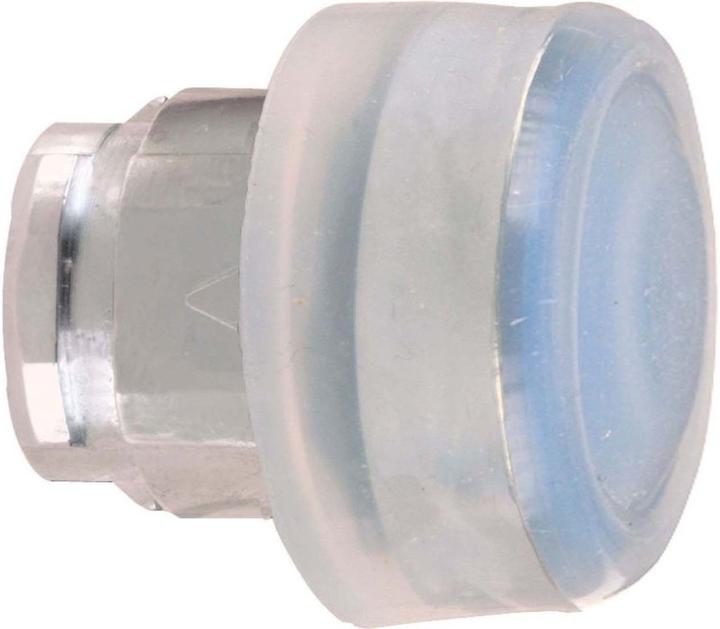

Description: Front element push button with silicone protective cap
Type: ZB4BP68
Button color: blue
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Button shape: flat
Suitable for lighting: no
With protective cover: no
Labeled: no
Switching function latching: no
Momentary: yes
With front ring: yes
Material of front ring: metal
Front ring color: chrome
Protection rating (IP), front side: IP66
Protection rating (NEMA), front side: other

Additional details:
Front element for Harmony ZB4 push button. Blue front, bezel made of chrome-plated metal, unlabeled. Dimensions (WxHxD): 30x30x37 mm, mounting diameter: 22 mm. Mechanical lifespan: 10,000,000 cycles. Head shape: round, standard. With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C. The modular metal program with a 22 mm installation size combines easy installation, efficiency, and modern design. Certifications according to CSA, BV, DNV, RINA, UL listed, LROS (Lloyds Register of Shipping), GL. Product standards according to JIS C 4520, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-5-4. EAN: 3389110888225.
