Schneider Electric Control relay,24Vdc,3NO+2NC,screw clamp

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 13.6. and Wed, 18.6.
Only 2 items in stock at supplier

Product details

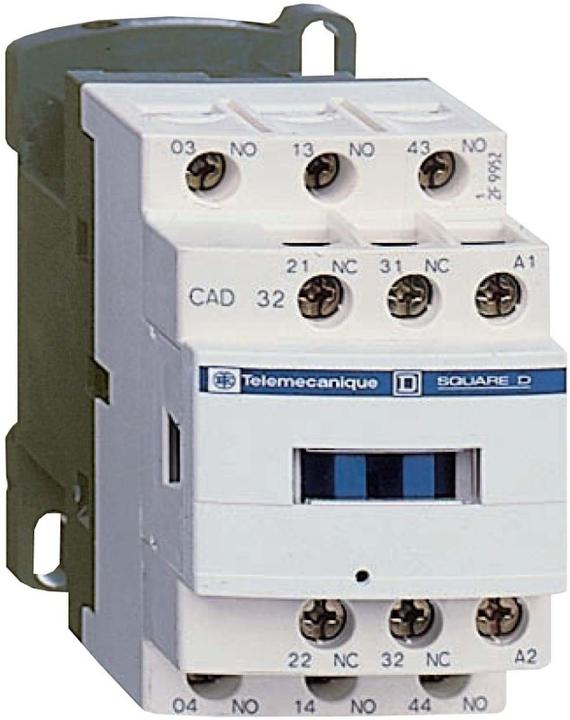

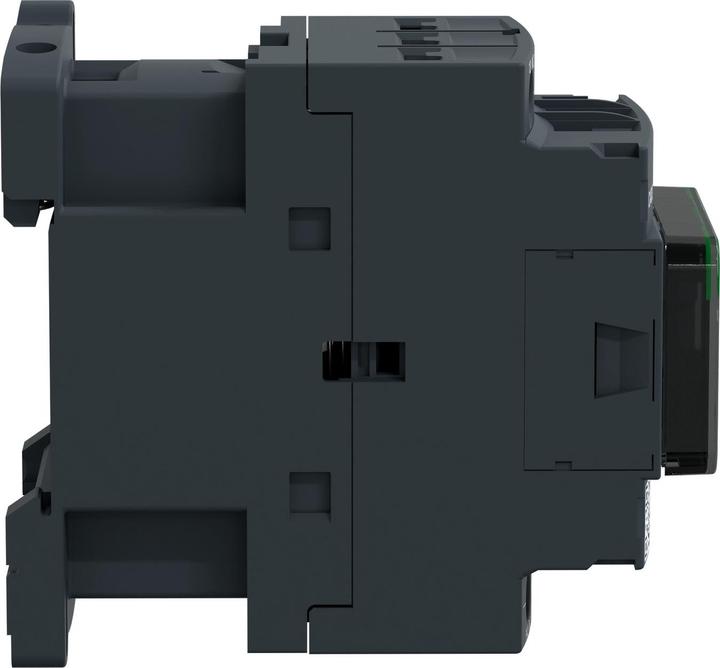

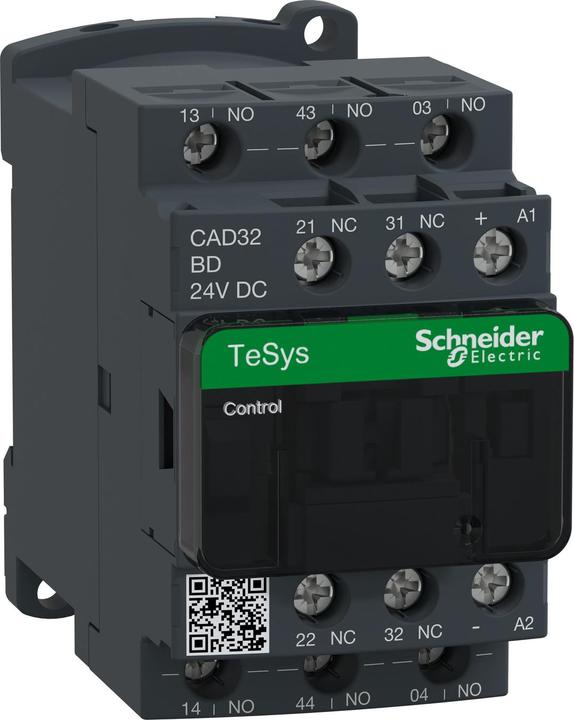

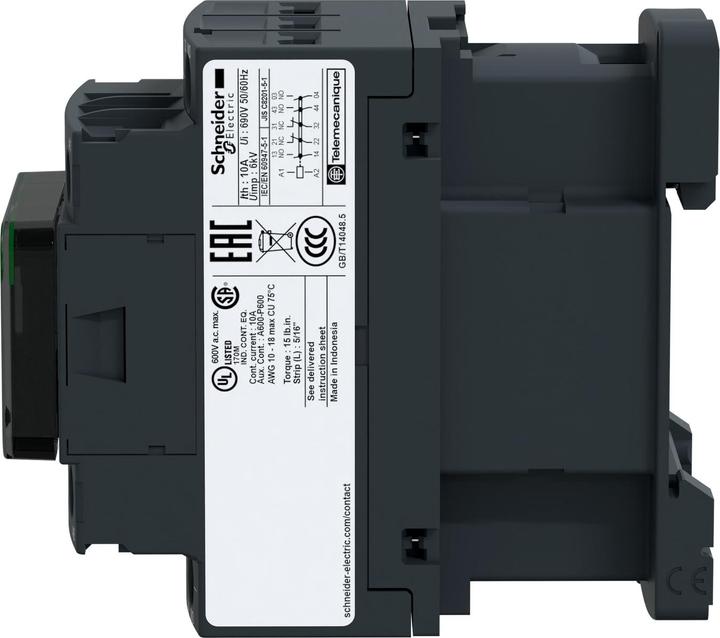

Schneider Electric Auxiliary Relay CAD32-BD

Manufacturer: Schneider Electric
Designation: Auxiliary Relay 3S 2Ö 24VDC
Type: CAD32-BD
Rated Control Supply Voltage Us at DC: 24 V
Voltage Type for Actuation: DC
Rated Operating Current: 10 A
Rated Operating Current Ie, 400 V: 10 A

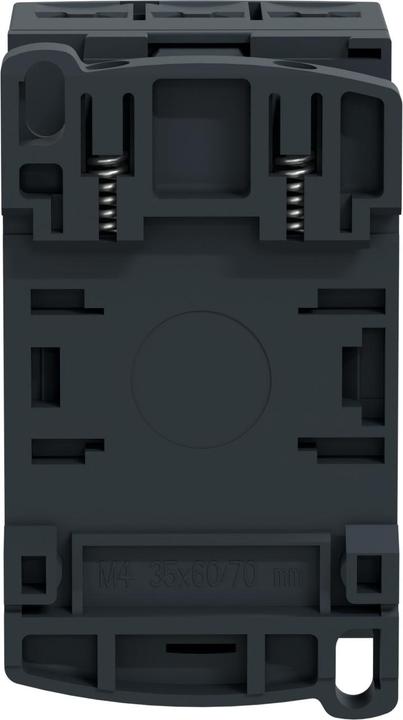

Mounting Type: DIN Rail/Screw
With LED Indicator: No
Suitable for Manual Operation: No
Interface: No
Number of Auxiliary Contacts as Normally Open: 2
Number of Auxiliary Contacts as Normally Closed: 3
Operating Voltage at DC: 690 V
Voltage Type of Operating Voltage: DC
Rated Switching Current: 0.005 A
Connection Type for Auxiliary Circuit: Screw Connection
Width: 45 mm
Height: 77 mm
Depth: 84 mm

Schneider Electric Auxiliary Relay CAD32-BD: Additional Details
TeSys Auxiliary Relays CAD. Auxiliary relay, DC operated 24 V DC with integrated protection circuitry. Connection via screw terminals, auxiliary contacts 3 S + 2 Ö, MTZ 12. Device width 45 mm, screw and snap mounting. Five integrated auxiliary contacts, expandable by up to nine auxiliary contacts.

Key specifications

input voltage
24 V
Scope of delivery
Auxiliary contactor 3S 2Ö 24VDC
Output voltage
24 V
Output current type
DC
Electric current output
10 A
Relay type
Contactor relay
Item number
9870189

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
CAD32BD
Release date
8.10.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Contactor relay
input voltage
24 V
Output voltage
24 V
Electric current output
10 A
Output current type
DC
Resistor
0 Ω (ohm)
Manufacturer Type
Cad32-bd

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Auxiliary contactor 3S 2Ö 24VDC

Product dimensions

Length
93 mm
Width
45 mm
Height
77 mm
