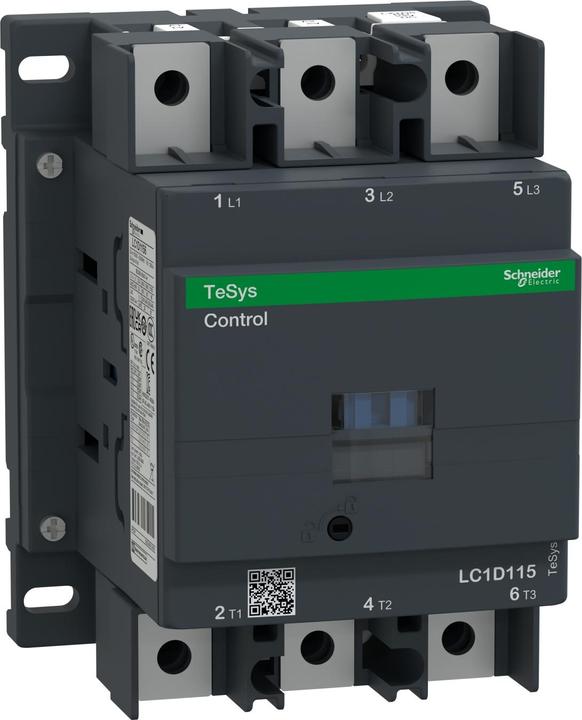

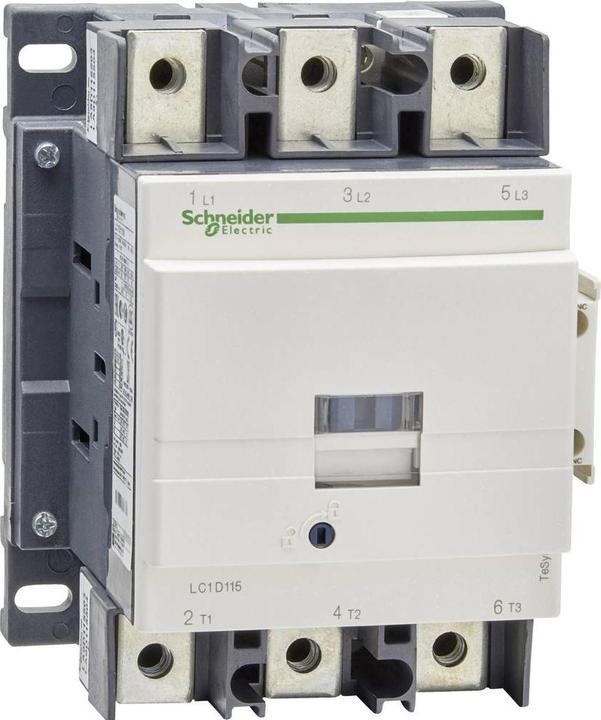

Schneider Electric Contactor, 3P, 24Vdc

Ratings
Delivered between Wed, 15.4. and Fri, 17.4.
Only 3 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Electric current output4

Product details

Area: TeSys D
Series: LC1D
Number of Poles: 3
Coil Voltage: 24 V dc
Rated Contact Current: 115 A
Rated Contact Voltage: 1 kV ac, 690 V dc
Number of Auxiliary Contacts: 2
Connection Type: Ring Terminal
Length: 158 mm
Depth: 136 mm

UL and CSA. Contactors with the suffix BL accommodate auxiliary contact blocks for front mounting (only the 2-contact version) and do not support side-mounted contacts. 3-pole contactors, DC-controlled. Integrated coil fault suppression. 3 normally open poles, auxiliary contact configuration: one normally open, one normally closed. Closing actuation time: 12 to 22 ms, opening actuation time: 4 to 19 ms.

Key specifications

Relay type
Power contactor, Switching relay
input voltage
24 V
Electric current output
115 A
Number of poles
3x

General information

Item number
9718257
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LC1D1156BD
Release date
24.9.2018

Relay properties

Relay type
Power contactor, Switching relay
input voltage
24 V
Electric current output
115 A
Number of openers
1x
Number of closers
3x
Number of poles
3x

Origin

Country of origin
Czech Republic

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
136 mm
Width
120 mm
