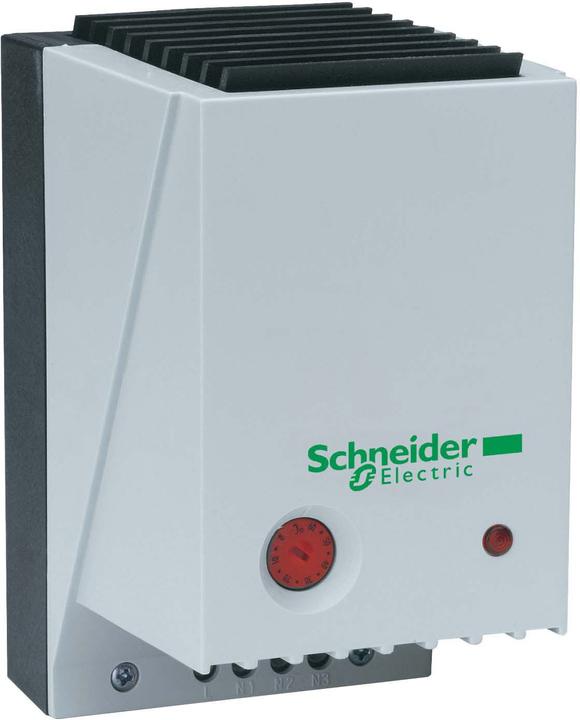

Schneider Electric ClimaSys PTC thermal fan rezystancyjny350-550W, 230V insulated thermal fan NSYCRP

Schneider Electric insulated heater NSYCRP1W230VTVC

Manufacturer: Schneider Electric
Designation: Insulated heater 400/550W 230VAC
Type: NSYCRP1W230VTVC
Rated power: 550 W
Operating voltage at AC 50 Hz: 230 V
Operating voltage at AC 60 Hz: 230 V
Voltage type: AC
With fan: Yes
With room thermostat: Yes
Continuous heating capacity at 10 °C: 550 W
Width: 155 mm
Height: 150 mm
Depth: 215 mm
Protection class (IP): IP20
Protection class (NEMA): 1

More details: ClimaSys PTC resistance heater. 400-550W, 230V AC, 50/60 Hz. Operating temperature -40 to 70°C. Setting range 0 to 60°C. Electrical connection: 2 screw terminals 2.5 mm². Bracket for DIN rail mounting 35 mm. Fixation by clips. Housing made of cast aluminium. Protection class IP20. Electrical protection required, must be installed with a thermal controller.
