Product details

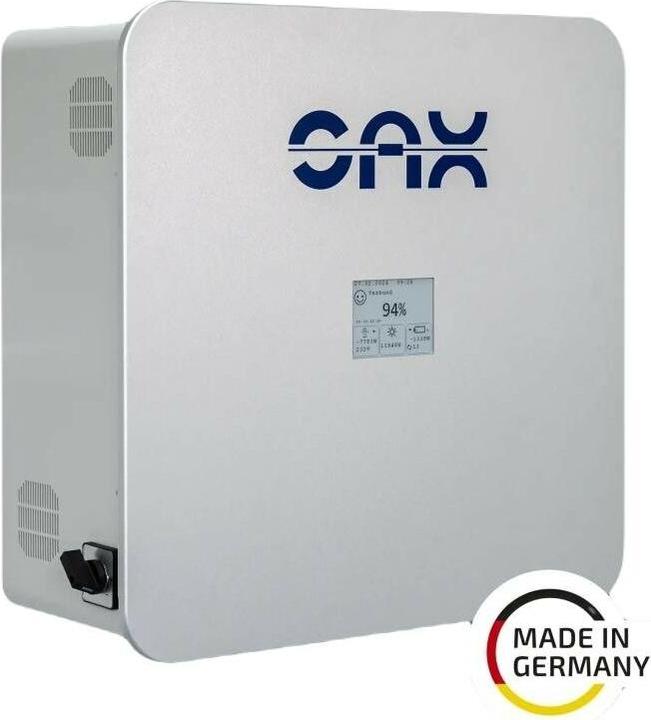

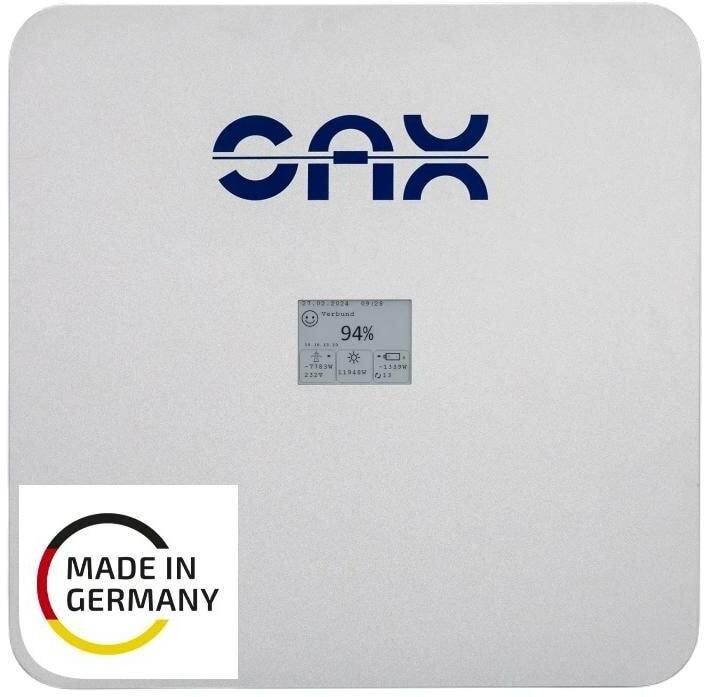

SAX Energy Storage Plug-In Home 7.7 kWh Standard, Weight: 72 kg, Connection: DC, Max. Discharge power: 4.6 kW, Usable capacity: 7.7 kWh, Max. charging power: 3.68 kW. Charging power: 3.68 kW. All-in-one: Inverter not required, Conversion efficiency: 99%. Communication: Modbus RTU, Modbus TCP/UDP, Communication ports: RS485 (Wired or LORA), RJ45 (LAN).
Battery technology | Lithium |
Nominal voltage | 230 V |
Nominal current | 20 Ah |
Nominal power | 27720000 W |
Power capacity | 7700 Wh |
Item number | 52906196 |
Manufacturer | SAX |
Category | Electricity storage |
Manufacturer no. | SAX Power Home Plus 7.7 kWh CH |
Release date | 11.11.2024 |
Battery technology | Lithium |
Nominal voltage | 230 V |
Nominal current | 20 Ah |
Nominal power | 27720000 W |
input | 3680 W |
Power output | 4600 W |
Battery category | Device batteries |
Battery | Rechargeable battery |
Power capacity | 7700 Wh |
Battery size | Device specific |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x SAX Power Home 7.7 kWh battery storage system |
Items per sales unit | 1 x |
Length | 32 cm |
Width | 70 cm |
Height | 75 cm |
Weight | 72 kg |
Specifications may include unverified machine translations.
