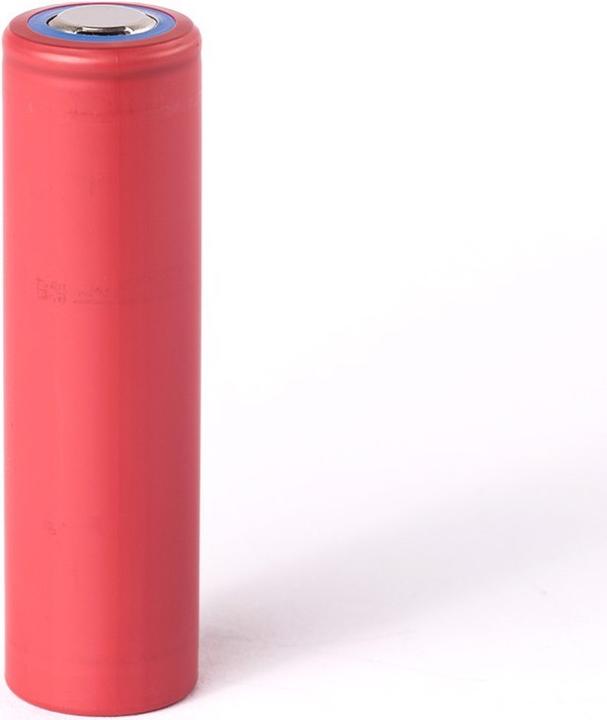

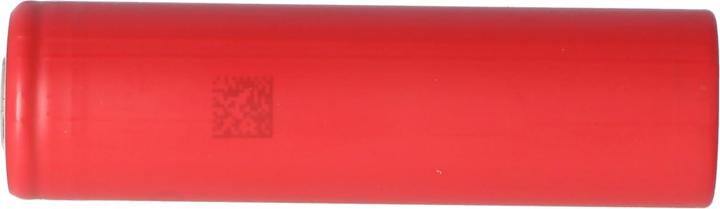

Sanyo Battery NCR18650GA (plus pole flat)

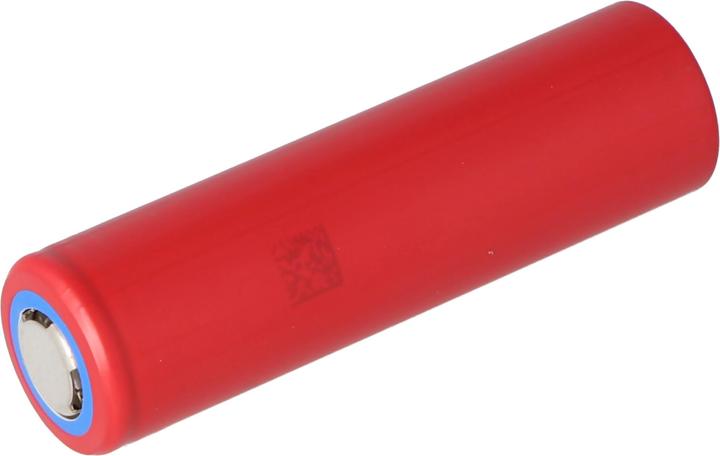

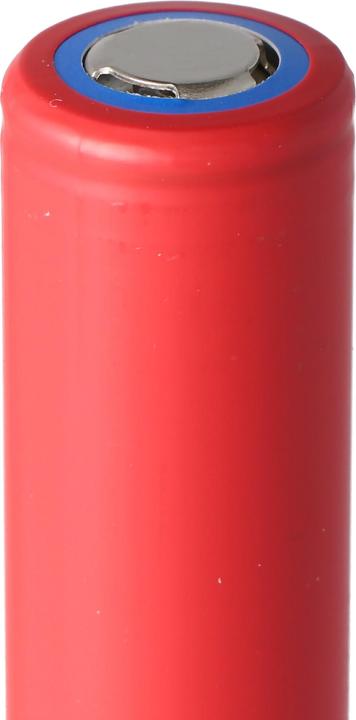

The Sanyo NCR18650GA model is the latest battery from Sanyo/Panasonic, featuring a particularly high capacity and discharge rate. The Sanyo cell is designed for industrial applications, e-mobility, laptops, LEDs, model building, and all other areas where powerful and durable batteries are required. The positive terminal is slightly raised, which means that two cells can make contact when stacked.

Technical specifications:

• Cell type: NCR18650GA Li-ion
• Capacity: 3500 mAh
• Minimum capacity: 3350 mAh
• Nominal voltage: 3.6 V - 3.7 V
• Charge termination voltage: 4.2 V
• Discharge current (constant): 2.5 C 8 A
• Max. discharge current (constant): 3 C 10 A
• Charge current: up to 0.5 C 1635 mA
• Discharge termination voltage: 2.50 V
• Protection circuit PCB: none

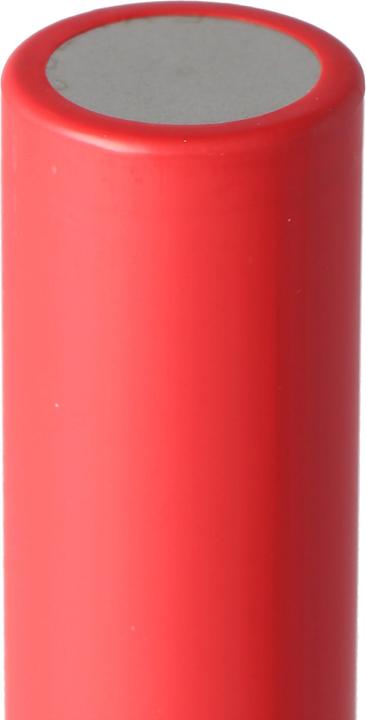

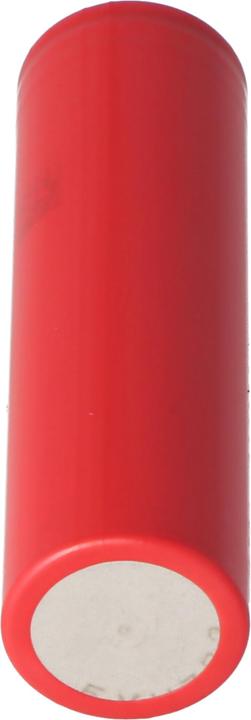

• Positive terminal: flat (Flat Top)
• Chemistry: Trimax
• Diameter: 18.30 mm ± 0.2 mm
• Height: 65.10 mm ± 0.25 mm
• Weight: 48 g ± 1 g
• Charging method: CC-CV

Safety notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advisable to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles.
