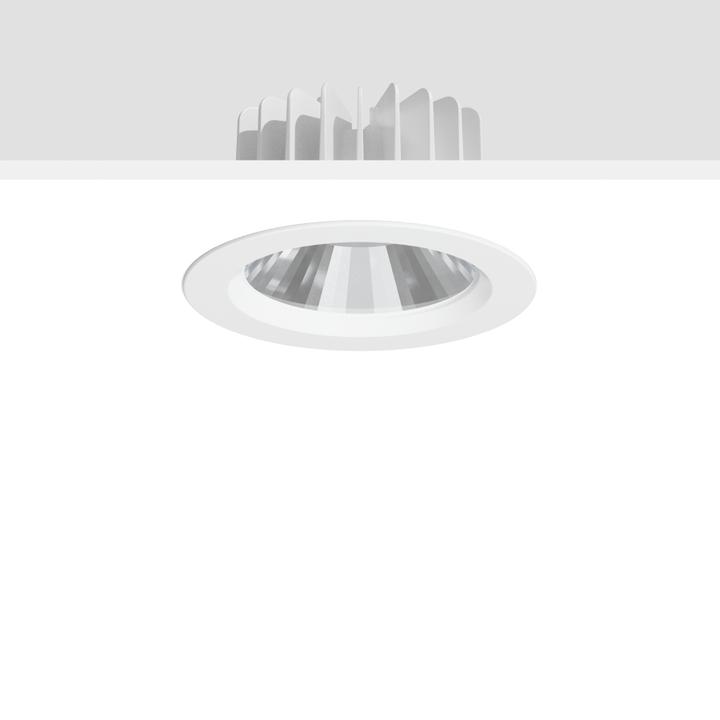

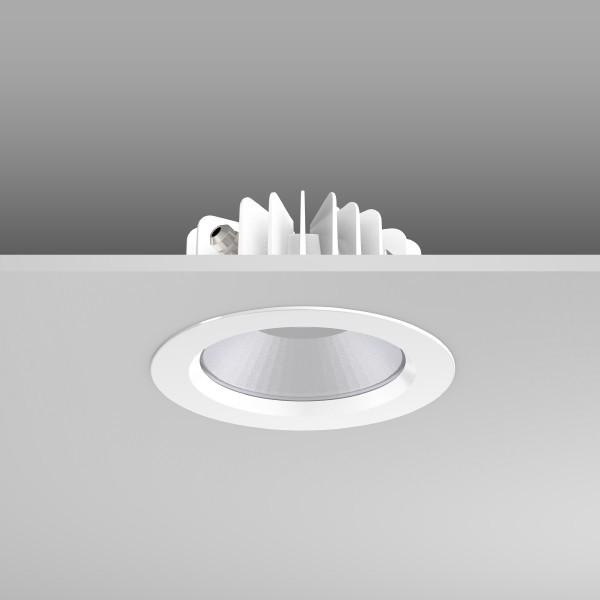

RZB LED recessed ceiling spotlight

2500 lm
Delivered between Thu, 7.8. and Thu, 28.8.

Product details

LED recessed downlight for the highest demands on technology and design. Die-cast aluminium housing designed as heat sink. Powder-coated die-cast aluminium cover ring. With Gore Protective Vents membrane valve as standard to prevent condensation. Luminaire also complies with the high protection rating on the installation side in the suspended ceiling (does not apply to control gear, IP 20). Closed design. Clear toughened safety glass (ESG) cover. Four-segment facetted reflector in matt aluminium with highly specular light mixing chamber. Tunable White dynamically adjustable from 2700 K to 6500 K. Tool-free installation thanks to spring fixing. With connected DALI DT8 control gear in separate device box. With connecting cable L 250 mm. Through-wiring box (5-pole) available as an accessory. Ball-proof in accordance with DIN 18032-3. Approved for use in the food and beverage industry.

Key specifications

Application range
Indoor
Scope of illuminant
incl. fixed light bulb
Dimmability
Dimmable
Height
0.30 cm
Material
Aluminium
Item number
34109182

General information

Manufacturer
RZB
Category
Wall lamps + Ceiling lamps
Manufacturer no.
901526.002.2.76
Release date
17.5.2023

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Aluminium

Application range

Application range
Indoor

Lamp properties

Wall & Ceiling Light Type
Recessed spotlight
Adjustability
None
Dimmability
Dimmable
Additional functions
Motion sensor
Mounting type
Ceiling mounting

Bulb properties

Scope of illuminant
incl. fixed light bulb
Bulb type
LED light
Luminous flux
2500 lm
Colour temperature
6500 K
Colour rendering index
80
Shielding angle
72°
Lamp service life
50000 h
Number of lights
1 x
Max. power per lamp
31 W

Smart home features

Smart Home
Not compatible

Power supply

Voltage
240 V
Power supply
Electrical connection
input voltage
220 - 240 V50 - 60 V
Power consumption
31 W

Safety

Protection type (IP code)
IP20
Protection class
Protection class II

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Height
0.30 cm
Diameter
18 cm
Weight
13.80 kg
