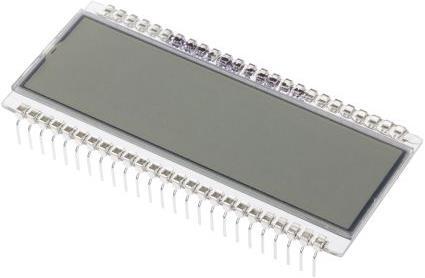

RS PRO Transflective 6-digit LCD, 5042PHT
Product details
Display compatibility: 7-segment
Character matrix: Single line, 6 characters
Character rows: 1
Character height: 12.7 mm
Display area size: 63.5 x 16.5 mm
External depth: 2.2 mm
Illumination color: Black
External dimensions: 69.9 x 30.5 x 2.2 mm
Display type: Transreflective
Minimum operating temperature: -30 °C
Series: PHT
It is essential to observe the antistatic precautions when storing or handling these LCD modules. Directly driven 7-segment displays, reflective and transflective. Reflective: The reflective versions are suitable for use in sunlight and for applications in low light conditions. Direct sunlight improves visibility. Transflective: The transflective versions have backlighting capability, making them ideal for use in low light or darkness. Suitable LED backlighting panels can be found in the accessory series. Extremely energy-saving, ideal for battery-operated devices. Standard 7-segment format with decimal point or decimal comma between the digits. Black segments on a silver background. Wide viewing angle. Delivered as a flat glass plate with fixed pins in a DIL package format.
