RS PRO Gel Pad,high performance,1.0mm,12W/mK
1 mm, 2 W/m KDelivered between Tue, 9.9. and Wed, 10.9.
6 pieces in stock at third-party supplier
6 pieces in stock at third-party supplier
Supplied by
Distrelec CH
free shipping
Product details

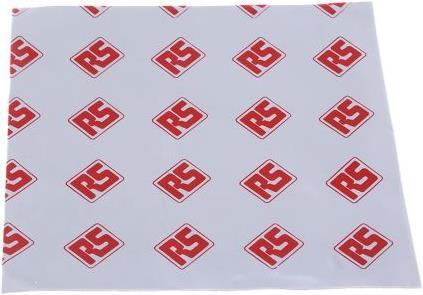

The thermal pad from Rs Pro is a high-performance solution for efficient heat transfer in various applications. With a thermal conductivity of 2.0 W/mK and a maximum operating temperature of 200 °C, this product is ideal for use in electronic devices where effective heat dissipation is required. The pad has a thickness of 1 mm and a square shape with dimensions of 150 mm x 150 mm, making it versatile for different uses. Its flammability is classified according to UL 94 V0, providing additional safety. The combination of aluminum oxide coating and a dielectric strength of up to 12 kV/mm ensures high reliability and durability under demanding conditions.
- Maximum operating temperature of 200 °C
- Dielectric strength of up to 12 kV/mm
- Thermal conductivity of 2.0 W/mK
- Flammability according to UL 94 V0.
Length | 150 mm |
Width | 150 mm |
Thickness | 1 mm |
Shore hardness | Shore 00-60 |
Max. temperature | 200 °C |
Item number | 10316946 |
Manufacturer | RS PRO |
Category | Thermal pads |
Manufacturer no. | 7074783 |
Release date | 15.1.2019 |
Colour | Grey |
Material | Aluminium oxide |
Thermal paste type | Heat conducting pad |
Thermal conductivity | 2 W/m K |
Max. temperature | 200 °C |
Shore hardness | Shore 00-60 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 150 mm |
Width | 150 mm |
Thickness | 1 mm |
Specifications may include unverified machine translations.
