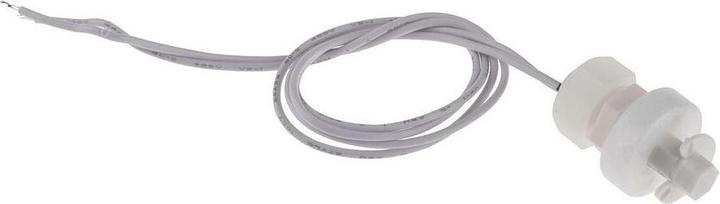

RS PRO Float switch vertical

Device type: Float
Mounting type: Vertical
Switching output: Direct load
Housing material: PP
Cable length: 300 mm
Operating temperature min: -20°C
Operating temperature max: +80°C
AC voltage max: 130V
DC voltage max: 180V
Current max: 700 mA

Miniature vertical float switch, PLS series. The PLS series float switches include one of the smallest float switches available on the market with a length of 29.5 mm. Typical applications include water dispensers, tank monitoring systems, beverage vending machines, coffee machines, and printing presses. It attaches to the top or bottom of the tank. Polypropylene is suitable for water and dilute acids. Equipped with a 300 mm cable conforming to UL 1007, AWG 24. Temperature range: -20 to +80 °C.
