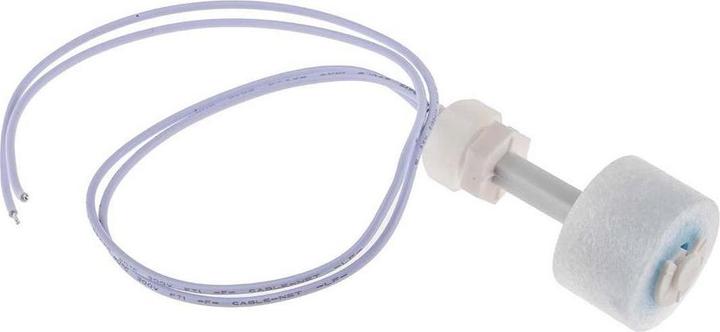

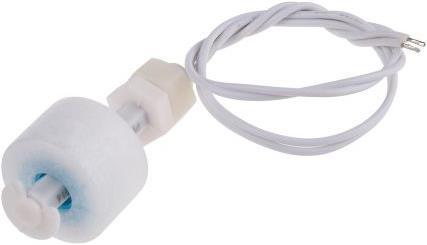

RS PRO Float switch vertical 240VAC
Minimum order 3Delivered between Mon, 22.12. and Tue, 23.12.
5 pieces in stock at third-party supplier
5 pieces in stock at third-party supplier
Supplied by
Distrelec CH
Free shipping starting at 50.–
Max. Switching capacity2
Product details
Device type: Float
Mounting type: Vertical
Switching output: Direct load
Housing material: PP
Cable length: 300 mm
Operating temperature min: -20°C
Operating temperature max: +80°C
AC voltage max: 250V
DC voltage max: 200V
Current max: 700 mA
Miniature vertical float switch, PLS series. The PLS series float switch includes one of the smallest float switches available on the market with a length of 29.5 mm. Typical applications include water dispensers, tank monitoring systems, beverage vending machines, coffee machines, and printing presses. It attaches to the top or bottom of the tank. Polypropylene is suitable for water and dilute acids. Equipped with a 300 mm cable conforming to UL 1007, AWG 24. Temperature range: -20 to +80 °C.
Width | 81 mm |
Diameter | 24 mm |
Item number | 9729571 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer no. | 519258 |
Release date | 24.9.2018 |
Minimum order | 3 |
Material group | Plastic |
Material | Polypropylene (PP) |
Nominal voltage | 250 V |
Nominal current | 1.50 A |
Max. Switching capacity | 50 W |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Scope of delivery | 300 mm, Alternative (alias)=519258, Connection type=cable, Diameter=24 mm, Float switch, Housing material=polypropylene (PP), Length=53 mm, max =-999, max.=80 °C, min =-999, min.=-20 °C, Operating temperature, Operating voltage, Switching capacity = 50 VA, Switching current max. - AC=1.5 A, Switching current max. - DC=1.5 A, Switching voltage=250 VAC 200 VDC, Type of output Level sensor = normally open (NO), Type=519258, Type=float switch |
Length | 92 mm |
Width | 81 mm |
Height | 28 mm |
Diameter | 24 mm |
Length | 10 cm |
Width | 7 cm |
Height | 2.50 cm |
Weight | 12 g |
Specifications may include unverified machine translations.
