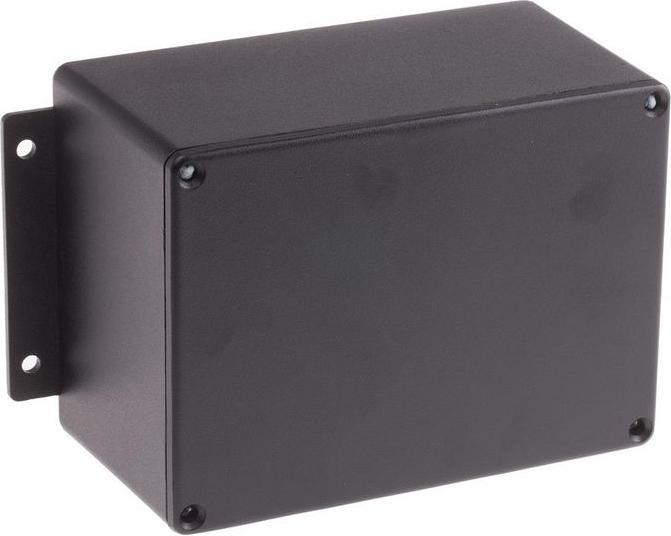

RS PRO Flanged box, black, 168.7x101.6x76.5mm
Housing, Minimum order 2Supplied by
Free shipping starting at 50.–
Housing material: Die-cast aluminium
Seal material: Neoprene
Length outside: 168.7 mm
Width outside: 101.6 mm
Height outside: 76.5 mm
IP protection class: IP66
Colour: Black
Cover colour: Black
With flange: Yes
Shielded: Yes
Flange to IP66 - Nylon coating. This RS Pro aluminum enclosure is nylon coated and has flanges to accept electrical components. It can be mounted on the wall or in a mounting location. Made of ADC-12 aluminum alloy with an acrylic finish. With an IP66 seal, this enclosure is dustproof, splashproof, and protects against heavy water jets.
Features and benefits:
Typical applications:
(IP) Protection from media ingress and what it means: The IP rating classifies the degree of protection against the ingress of solids (including body parts such as hands and fingers), dust, accidental contact, and water into electrical enclosures.
Frequently asked questions:
Can the enclosure be used outdoors? Yes, with an IP66 rating, the enclosure is dust and splash proof.
Electrical engineering accessory type | Housing |
Item number | 9910999 |
Manufacturer | RS PRO |
Category | Electronics supplies + Casing |
Manufacturer no. | 6215034 |
Release date | 16.10.2018 |
Minimum order | 2 |
Colour | Black |
Compatible hardware | Various |
Electrical engineering accessory type | Housing |
Manufacturer Type | Black, External dimensions 168.7 x 101.6 x 76.5mm, IP66, RS PRO aluminium housing |
Country of origin | Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Aluminium housing, Black, External dimensions 168.7 x 101.6 x 76.5mm, IP66 |
Length | 168.70 mm |
Width | 101.60 mm |
Height | 76.50 mm |
