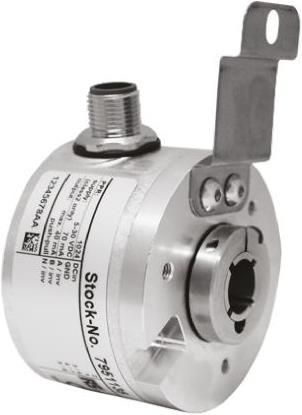

RS PRO 58mm optical incremental encoder

Sensor
Ratings
BrandMore from RS PRO
Delivered between Tue, 30.12. and Sat, 3.1.
Only 1 piece in stock at supplier
free shipping

Product details

Pulses per revolution: 50
Encoder technology: Incremental
Maximum rotation: 6000 rpm
Output signal type: Push-pull inverted
Shaft type: Hollow
Supply voltage: 5 to 30 V DC
Resolution: 2500 I/rev
Protection class: IP65
Total width: 58 mm diameter
Total depth: 44.5 mm
Operating temperature minimum: -20°C
Operating temperature maximum: +80°C
Rated current: 70 mA

WDG58H Incremental shaft encoder, 58 mm. Optical incremental shaft encoder RSI 58H. Maximum mechanical and electrical safety with through-hole design. High protection IP65 with oil seal. Full connection protection with 10 V DC to 30 V DC. High noise immunity up to 5000 I/rev. Stainless steel shaft. Robust industrial standard encoder. Operating temperature: -20 to +80°C.

Key specifications

Scope of delivery
Push-pull inverted Output signal
Compatible hardware
Various
Item number
9864998

General information

Manufacturer
RS PRO
Category
Electronics modules
Manufacturer no.
7951113
Release date
5.10.2018

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Sensor

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Push-pull inverted Output signal

Product dimensions

Length
164 mm
Width
139 mm
Height
138 mm

30-day right of return
24 Months Warranty (Bring-in)
