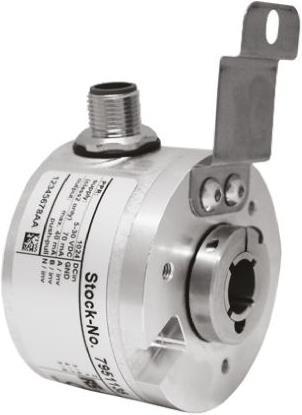

RS PRO 58mm optical incremental encoder

Sensor
Ratings
BrandMore from RS PRO
Delivered between Fri, 26.12. and Wed, 31.12.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

Impulses per revolution: 4096
Encoder technology: Incremental
Rotation max.: 6000 rpm
Output signal type: Push-pull inverted
Shaft type: Hollow
Supply voltage: 10 to 30 V dc
Resolution: 5000 I/U
Protection class: IP65
Overall width: 58 mm diameter
Total depth: 44.5 mm
Operating temperature min.: -20°C
Operating temperature max.: +80°C
Nominal current: 100 mA

WDG58H incremental encoder, shaft, 58 mm. Optical incremental encoders RSI 58H. Maximum mechanical and electrical safety with through hole design and a high degree of protection (IP65) with oil seal. Complete connection protection with 10 V dc to 30 V dc. High interference immunity up to 5000 I/U. Stainless steel axis. Robust industrial standard encoders with an operating temperature range of -20 to +80 °C.

Key specifications

Scope of delivery
Push-pull inverted Output signal
Compatible hardware
Various
Item number
9734758

General information

Manufacturer
RS PRO
Category
Electronics modules
Manufacturer no.
7951141
Release date
24.9.2018

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Sensor

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Push-pull inverted Output signal

Product dimensions

Length
180 mm
Width
140 mm
Height
92 mm

30-day right of return
24 Months Warranty (Bring-in)
