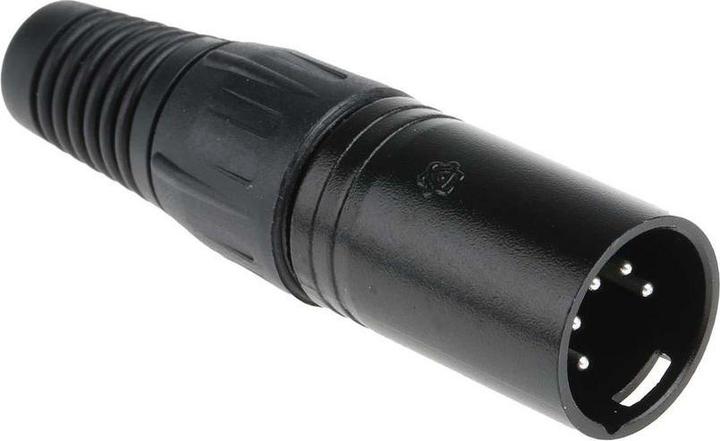

Rs Pro 5 way black chrome finish XLR cable plug

Number of contacts: 5
Gender: Male
Mounting type: Cable mounting
Housing orientation: Straight
Color: Black
Contact plating: Silver
Housing material: Zinc
Connection type: Soldering
Rated current: 7.5 A
Operating voltage: 250 V AC
Contact material: Brass
Operating temperature min.: -30 °C
Operating temperature max.: +80 °C

Not suitable for use as a power plug. Cable connector with housing, RS Pro. These multipole audio/video connectors from RS Pro are designed for professional use. The AXR/XLR-compatible connectors are precision-engineered with a zinc die-cast housing and silver-plated, turned contacts made of solid brass. A significant advantage of these connectors is the latch mechanism, which allows the plugs and sockets to be easily connected and disconnected with a simple latch lever. Wiring and assembly are also straightforward, and the strain relief accommodates cable diameters from 2.8 mm to 8.0 mm, ensuring a secure cable attachment. All models are highly reliable and of excellent quality. Features and benefits: Solder connections have a hole that provides more grip for the cable and more reliable connections. Housing colors available in black or natural. Plug and socket designs available.
