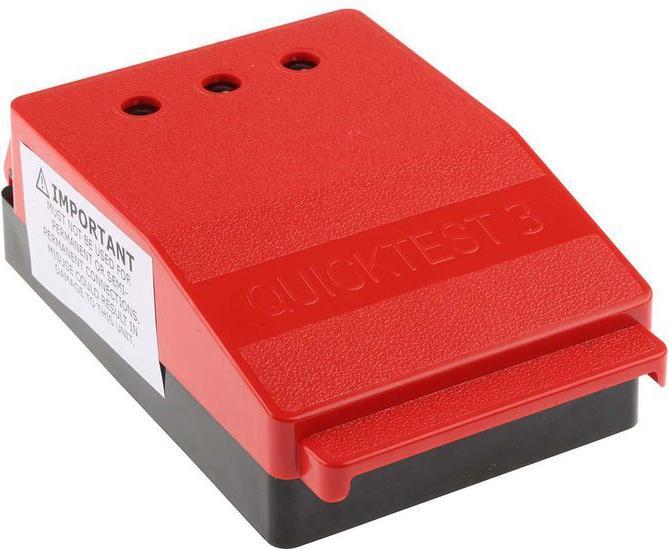

Rs Pro 3 phase mains test block without cable

Operating voltage: 440 V AC
Width: 100 mm
Height: 49 mm
Depth: 160 mm
Rated current: 16 A

Always connect the earth connection for safety. Always use in conjunction with an RCD. Duty cycle (per 10 minutes): 16 Amps - 10%, 13 Amps - 25%, 10 Amps - 40%, 7 Amps - 80%, 5 Amps - 100%. Please note that this three-phase test block is not supplied with a power cord.

The Three Phase Quicktest QT3 Test Power Connector is a compact, robust power connector designed for temporary, safe, and efficient connection of unarmored cables to 440 V AC three-phase power supplies. The QT3 has a maximum rating of 16 Amps. It is designed for use in applications including manufacturing, test and repair, calibration, measurement, and anywhere a fast, safe, and non-permanent connection to a three-phase power supply is required.

Connection to the QT3 takes just a few seconds. Simply open the lid, which automatically isolates the three-phase supply, insert each bare cable end by pressing the five color-coded piano key cable clips, and then close the lid to complete the circuit between the device being tested and the power supply. Opening the lid again isolates the supply source so the conductors can be rapidly removed.

Quick release color-coded cable clips are marked L1, L2, L3, N, and E. Each phase is protected with 16 Amp fuses as standard, and each phase is fitted with an individual neon indicator lamp to indicate when each phase is live. The connector can be bench mounted or free standing.

Size (HxWxL): 49 mm x 100 mm x 160 mm
Maximum rating: 16 Amps 440 V AC
Operating temperature: -10°C to +40°C.
