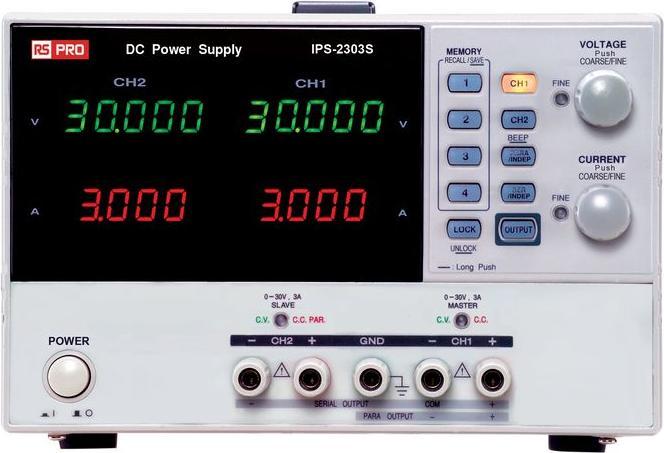

RS PRO 2ch,180W programmable linear DC P/S

Output voltage: 0 to 30 V
Output current: 2 x 0 to 3 A
Number of outputs: 2
Type: Digital
Rated power: 180 W
Supply voltage: 100 to 230 V AC
Number of displays: 4
Input connection: IEC 320
Output connection: Terminal block
Minimum temperature: 0 °C
Maximum temperature: +40 °C

User manual and power cable are included. Programmable, linear RS Pro DC power supplies from the IPS series with multiple outputs offer state-of-the-art technology at an affordable price. The available models feature 2, 3, or 4 independent output channels and support a maximum power of 180 W to 195 W. The power supplies include four memory slots for voltage and current settings, a USB remote interface, high resolution (IPS-2303S, IPS-3303S, and IPS-4303S), and intelligent fan control for quiet operation.

Features and benefits:

• 2, 3, or 4 independent isolated outputs (depending on the selected model)
• 4 LED display sets with 3 decimal places (IPS-2303S, IPS-3303S, and IPS-4303S)
• Minimum resolution: 1 mV/1 mA (IPS-2303S, IPS-3303S, and IPS-4303S), 100 mV/10 mA (IPS-3303D)
• Digital front panel control (rotary encoder switch, rubber button with display)
• User-friendly operation, coarse/fine volume control
• 4 memory slots: Save/Retrieve
• Lockable switch
• Output ON/OFF
• Tracking in series and parallel mode
• Intelligent fan for low noise
• PC software and USB driver
• Standard USB interface
• Power source: AC 100 V/120 V/220 V/230 V ±10 %, 50/60 Hz
• Compact design (dimensions: 210 x 130 x 265 mm)
• Weight: approx. 7 kg

Applications: Laboratory (research and development, industry, education), LED industry.
