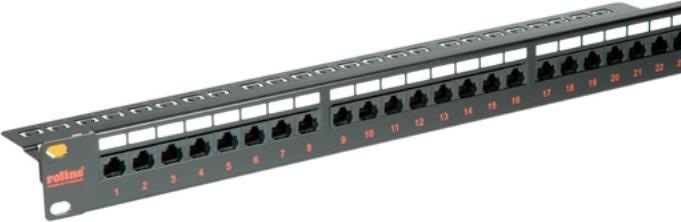

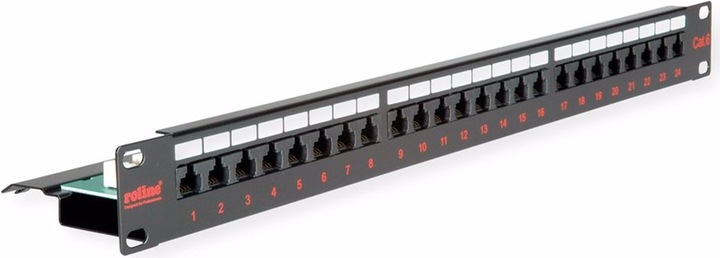

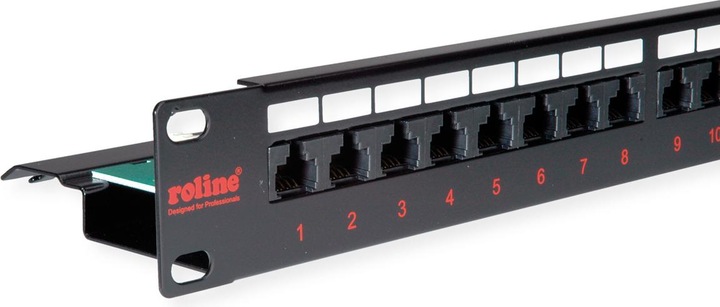

Roline Patch panel

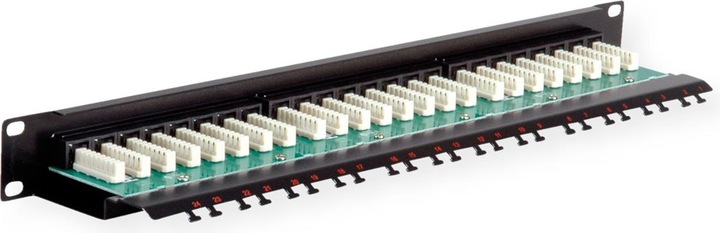

The ROLINE Cat. 6 / Class E 19-inch patch panel meets the transmission characteristics of a Cat. 6 / Class E Permanent Link and is ideal for use in Gigabit Ethernet networks. The rear cable connection is implemented using LSA connection technology. The LSA strips feature color coding according to EIA / TIA 568. We recommend using the following components for setting up a structured cabling system: ROLINE UTP Cat. 6 / Class E solid wire installation cable, ROLINE Cat. 6 / Class E flush-mounted/socket-mounted outlet, ROLINE Cat. 6 / Class E 19-inch patch panel in gray/black, and ROLINE UTP patch cables with RJ-45 connectors in gray. This product combination has been tested by GHMT AG, an accredited testing laboratory, according to Class E in a 100 m channel. Technical specifications: Manufacturer ROLINE, Manufacturer number 26.11.0362, Product group connection technology TP, Product type patch panel Cat.6 / Class E, Freight item no, Shielding type unshielded, Transmission quality Cat6 / Class E, Rack system 48.30 cm (19") technology, Number of ports 24, Connection installation cable Krone LSAplus, Wiring EIA/TIA 568A & 568B, Color black, Modular design no, Shield contact no, Separate strain relief yes, Plug direction straight, Gross weight 1.136 kg / including packaging.
