Roline 19-inch wall-mounted housing Pro 16 U

10.86 RU, 19 inch rack
Ratings
BrandMore from Roline
Delivered between Tue, 17.6. and Wed, 18.6.
10 items in stock at supplier

Product details

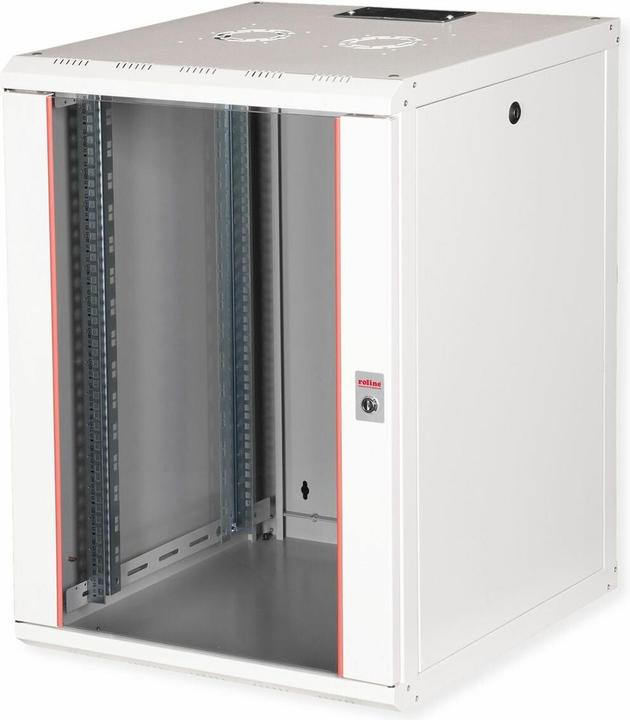

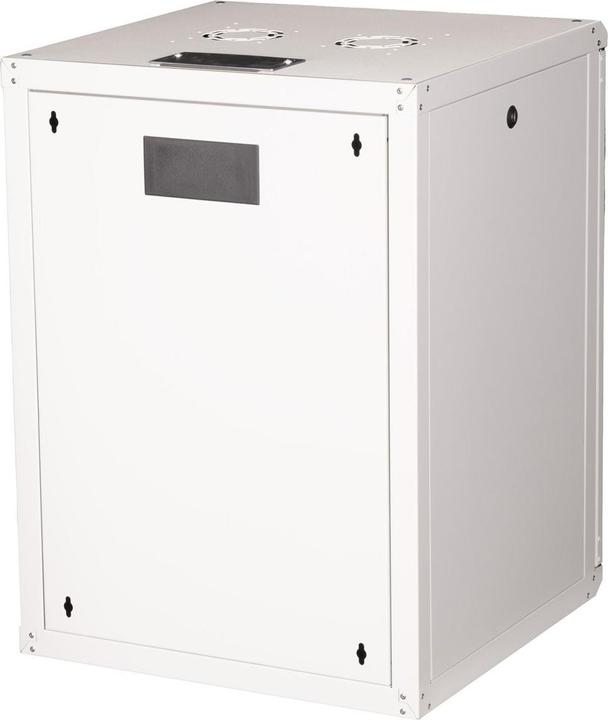

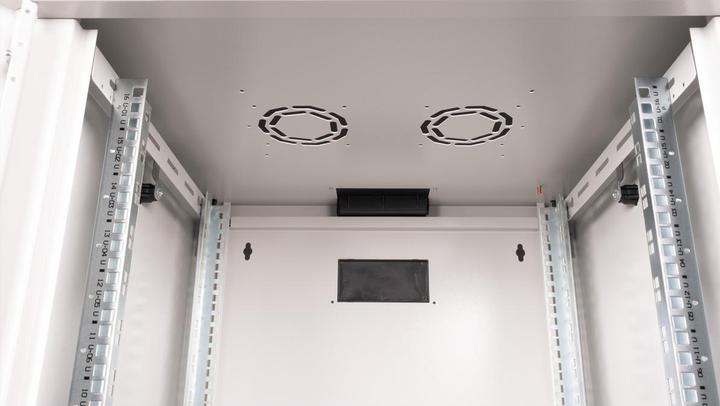

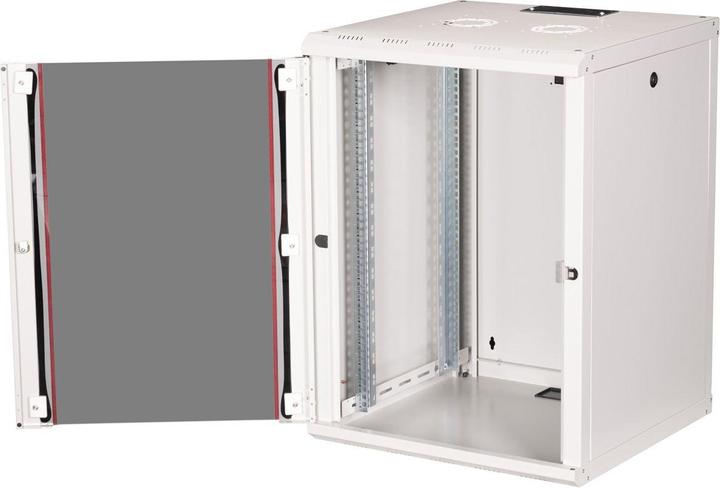

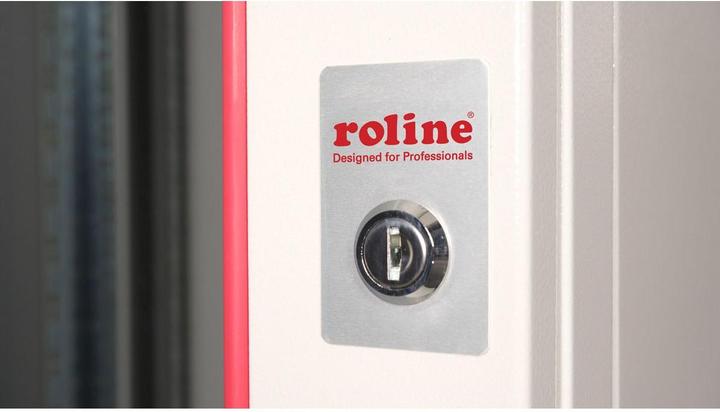

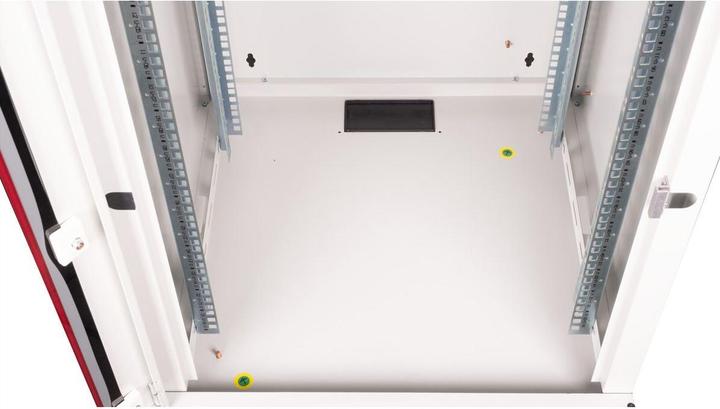

ROLINE 19-inch Wall Cabinet Pro 16 HE 600x600 WxD gray. The wall cabinets of the ROLINE Pro Series are specifically designed for flexible network cabling. Each cabinet features a sliding cable entry on the roof with a rubber seal. The back panel and the base plate are equipped with punched cable entries and plastic covers. The roof chassis has a punched area for the installation of a fan module. Inside, there are two pairs of galvanized profile rails with height units of 483 mm (19"), which are also adjustable in depth. The robust steel constructions of the cabinets are made from up to 1.5 mm thick steel sheet and are available in gray (RAL 7035) or black (RAL 9005) powder-coated finishes. The side panels and the front door are modular, lockable, and removable, which enhances accessibility. Wall mounting is done in two simple steps: first, the back panel is screwed to the wall, and then it is connected to the cabinet. Optional leveling feet or casters can be used for free-standing installation of the cabinets.

Key specifications

Type
Cabinet
Usable installation depth
450 mm
Protection type (IP code)
IP20
Ventilation
Passive
Server cabinet features
Door, Lockable, Removable side panels, Safety glass
Item number
47381449

General information

Manufacturer
Roline
Category
Server cabinets
Manufacturer no.
26.21.0007
Release date
24.7.2024

Colour

Colour
Grey
Exact colour description
RAL 7035 Light grey

Material

Material group
Metal
Material
Steel

Server cabinet properties

Type
Cabinet
Rack size
19 inch rack
Form factor size
10.86 RU
Usable installation depth
450 mm
Max. weight
100 kg
Protection type (IP code)
IP20
Wall thickness
1.50 mm
Ventilation
Passive
Server cabinet features
Door, Lockable, Removable side panels, Safety glass

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
19-inch wall-mounted housing Pro 16 U, Earthing cable set, Installation

Product dimensions

Height
818 mm
Width
600 mm
Length
600 mm
Weight
36 kg
