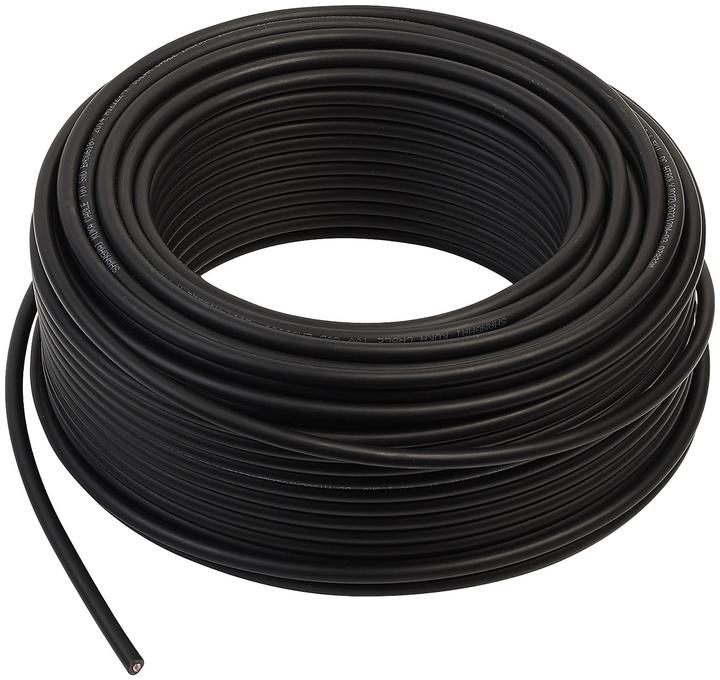

Revolt Solar cable with 1x 6 mm² (10 AWG), 50 m, IP68, up to 1,800 V

Solar modules securely wired: Your new solar cable is tested according to the H1Z2Z2-K standard, making it suitable for free movement and hanging use as well as for fixed installation. It can also be used in and on protective insulated devices and systems with protection class II, as well as in explosion-prone areas.

Solar modules quickly wired: The solar cable can be installed in no time, even underground. Just cut it to length and connect it – for your solar system like a pro!

Extra robust: Thanks to flame-retardant, halogen-free, and electron beam cross-linked XLPO insulation. The sheath is additionally UV and ozone resistant, ensuring the cable withstands environmental influences effectively.

High-quality copper cable with 1x 6 mm² (10 AWG).
Suitable for use in all photovoltaic systems for wiring solar modules.
For rated voltage up to 1,500 volts (AC) / 1,800 volts (DC).
Rated current: 30 A.
Tested according to the H1Z2Z2-K standard (EN50618): suitable for free movement and hanging use as well as for fixed installation.
Can also be installed underground.
XLPO insulation: flame-retardant, halogen-free, and electron beam cross-linked.
Sheath additionally UV and ozone resistant.
Waterproof (IP68).
Temperature range: -40 to +90 °C.
Length: 50 m, Weight: 3.9 kg.
