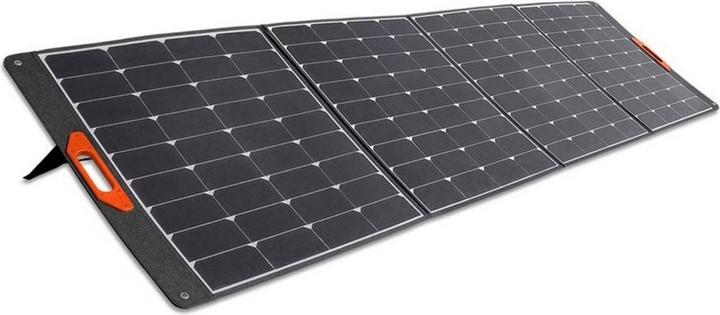

Questions about PowerOak Solar panel

The 1500x can charge up to 600W but requires an adapter. Connection 8 at the specs https://goalzero.com/products/goal-zero-yeti-1500x-portable-power-station

for 1 single panel 12 A max = 2.5mm2, so 4mm2 = ok and minimises the voltage drop over 10 metres Be careful if you put several panels in parallel the current (A) is added = always 36 V but 12 A + 12 A = 24 A so 8 or 10mm2 cable Be careful if you put several panels in series the voltage (U) is added = always 12 A but 36V + 36V = 72V so 4mm2 cable always ok Bye P =U*I P= 420 W U= 36 V I= 11.6666666 A 36*11.66666 = 420W 420W/36= 11.66666 A = 2,5mm2 Minimum

I use it with a BLUETTI Powerstation AC200P, works perfectly. Just make sure that the Power Station is compatible in terms of plugs and that the power of the panel does not exceed the maximum value of the Power Station.

According to my research, the Powerstation has a maximum solar input power of 300W. Therefore, I would not recommend this panel.

Yes, I charge an Ecoflow Delta Pro 3600 direct from this panel. Important: if several panels are connected in parallel: the amperes add up, check maximum of charging station, shadow on 1 single panel has less influence. Several panels in series (better effect) add up the volts, but they should all be the same panel, otherwise other rules apply. Check the maximum of the charging station. François

According to our information, this is compatible.

solar has MC4. have briefly read the operating instructions for your bluetti AC 200. YES supports: (XT90 on MC4)

Hello Peteraddor. I bought the panel for the Ecoflow River Max and it works fine. The Delta has the same connections, so no problem. Greetings
