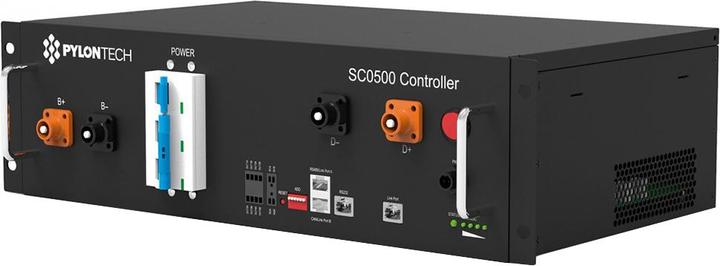

Pylontech SC0500-100S-V2 Control unit for H48050 Powercube X1 with 2m cable set

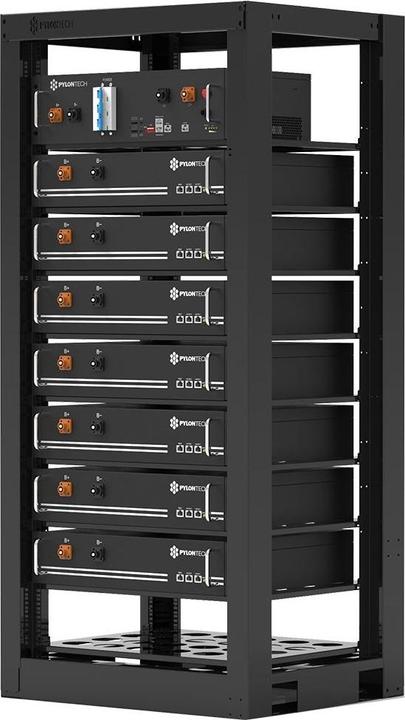

The SC0500-100S-V2 from Pylontech serves as a central unit for monitoring and controlling the latest generation. The BMS is an essential component of the high-voltage battery system Powercube X1 and enables seamless communication with compatible inverters. In addition to the BMS, 2-10 battery modules can be connected, with each high-voltage battery having a capacity of 2.4 kWh. These are connected in series to form a battery tower with a maximum capacity of 24 kWh when combined with a control unit. If multiple towers are to be connected in parallel, a control unit is required for each tower. Pylontech's long-established communication protocol is directly supported by a variety of inverters. A compatibility list for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis, and many others, can be downloaded from our attachments. The Powercube X1 control unit protects against: deep discharge and overcharging, overvoltage during charging, excessive currents during charging and discharging, overheating and undercooling, short circuits, and reverse polarity. The Powercube X1 energy storage system The Powercube X1 series from Pylontech is a next-generation high-voltage battery system. The complete system is flexible in application and can be expanded as needed.
