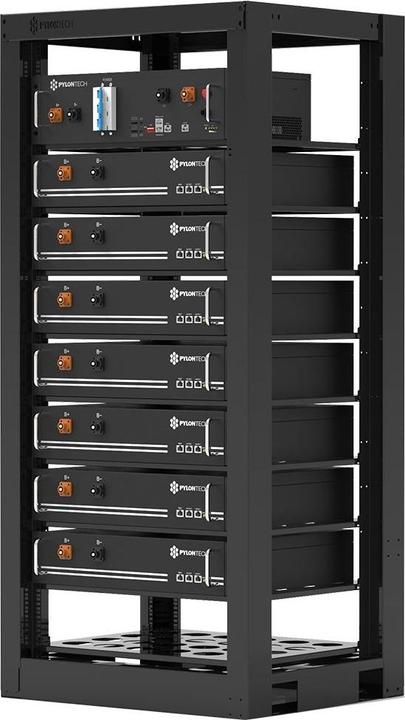

Pylontech H48050 Powercube X1 V2 Battery Module 2.4kWh LiFePO4

The H48050 (V2) battery module from Pylontech is a high-voltage storage solution featuring LiFePO4 cell technology, providing a very long lifespan with high cycle stability. Its flexible and stackable design allows for application in various scenarios and makes installation easy. With a nominal voltage of 48V and a capacity of 2.4 kWh, the battery delivers excellent performance under heavy loads. A compatibility list for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis, and others, is available for download.

Information about the Powercube X1 battery module:

• Over 5000 cycles at 90% DoD
• LiFePO4 cell technology
• High cycle stability and long lifespan
• Expandable from 4.8 kWh to 24 kWh capacity
• Flexible and stackable
• Very low failure rate

The Powercube X1 energy storage system from Pylontech is a high-voltage battery storage system consisting of highly efficient battery modules. The complete system is versatile and can be expanded as needed. An energy system can be built with a minimum of 2 and up to 10 battery modules. Each Powercube X1 tower requires a BMS control unit for operation. Caution: The Powercube does not have a soft start circuit.

Flexible expansion: The Powercube battery system from Pylontech offers high flexibility through its expandable configurations.
