Purecrea 8P 10A Electrical slip ring 250rpm
Supplied by
free shipping

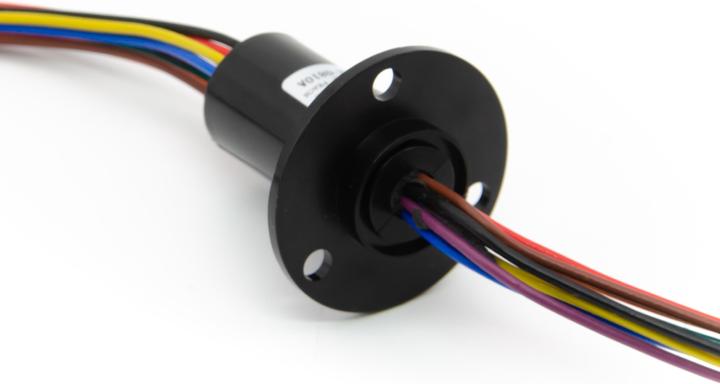

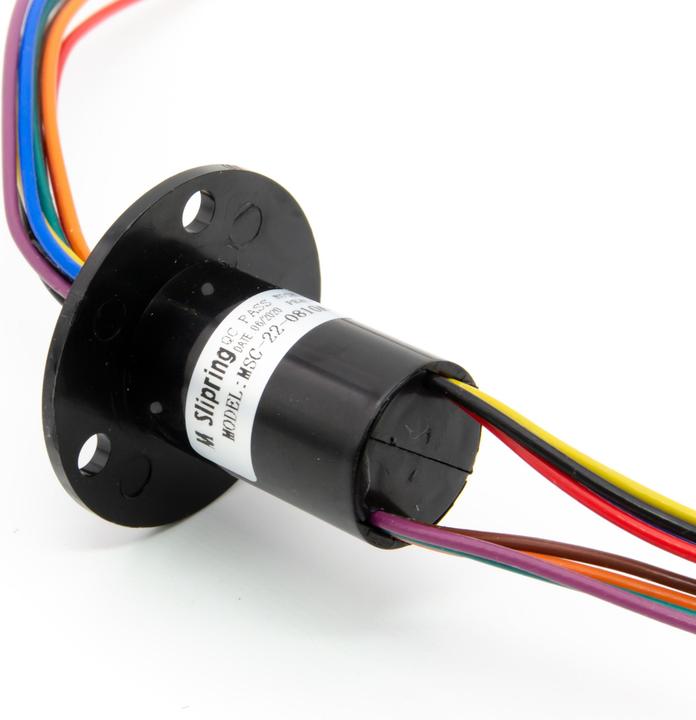

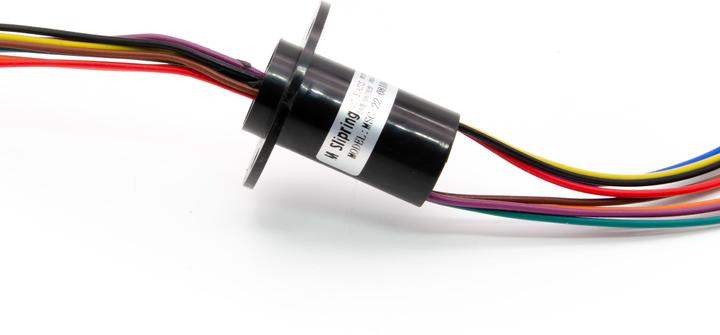

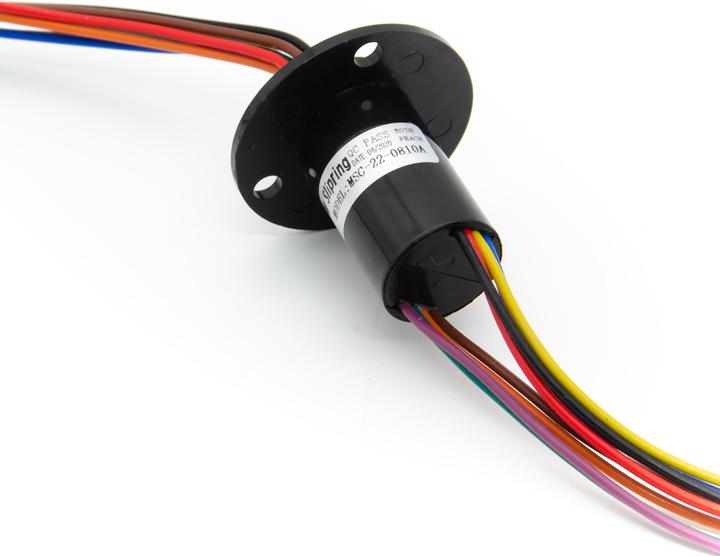

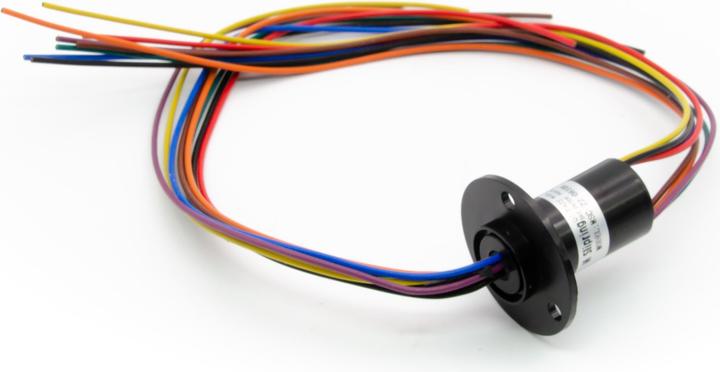

With this MSC-22-0810A slip ring, also known as an electrical rotary joint, you can transmit signals and power to rotating components. This is particularly interesting for building a weather station, in a wind turbine, or other rotating projects.
Technical details:
Type: MSC-22-0810A
Speed: up to 500 RPM
Number of channels: 8
Current: 10 A per channel
Operating temperature: -20 °C to 60 °C
Contact material: Gold
Connection wire: AWG 17
Rated voltage: 240 VAC/DC
Length of connection wire: 250 mm
Insulation resistance: 1000 MΩ/500 VDC
Lifespan: 500 million revolutions (depending on speed and environment)
Dimensions: 44.5 x 42.5 mm
Weight: 75 g
Scope of delivery:
1x 8P 10A electrical slip ring 250 rpm.
Max. Speed | 500 rpm |
Item number | 37686574 |
Manufacturer | Purecrea |
Category | RC motors |
Release date | 23.8.2023 |
Sales rank in Category RC motors | 48 of 1819 |
Colour | Gold |
Number of channels | 8 x |
Power consumption | 10 A |
Max. Speed | 500 rpm |
Number of cells NiCd/NiMH | 8 |
continuous current | 10 |
CO₂-Emission | |
Climate contribution |
Length | 4.25 cm |
Width | 4.45 cm |
Weight | 75 g |
