Purecrea 2-compartment 18650 battery compartment / battery holder
Supplied by
Free shipping starting at 50.–

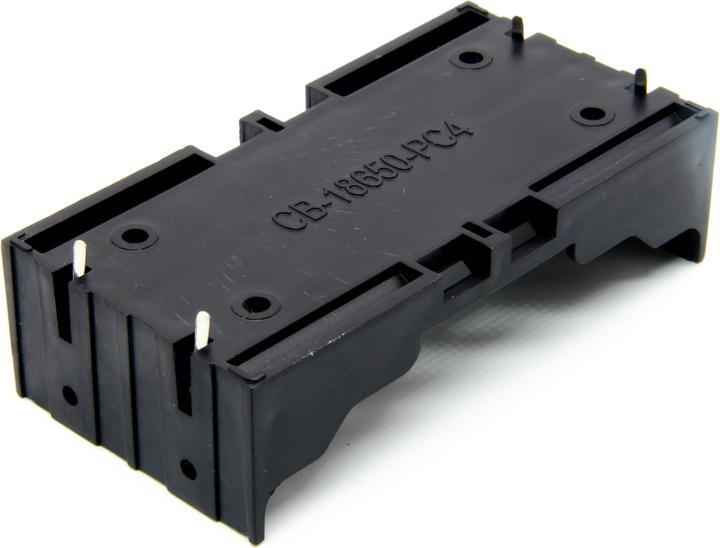

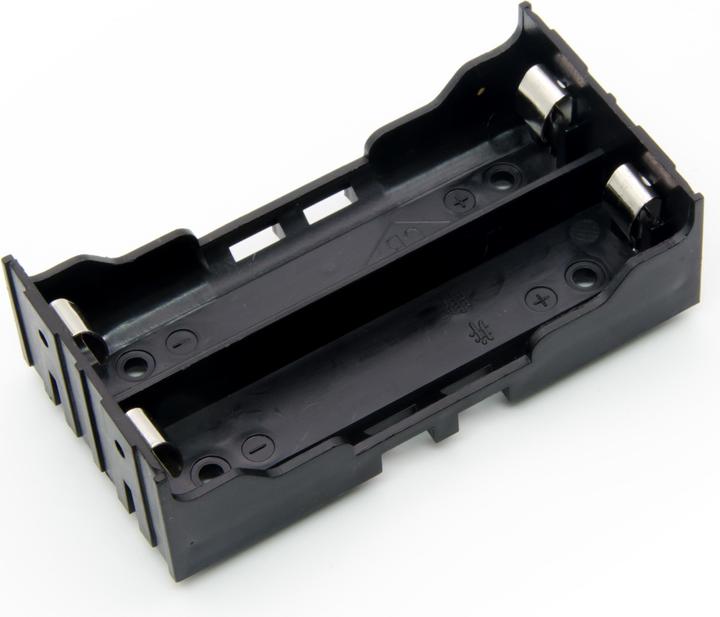

This 2-cell battery holder is suitable for 18650 Li-Ion / LiPo batteries without protection circuitry. This LiPo battery holder features pin contacts on the bottom, allowing you to solder the battery directly onto a printed circuit board (PCB). Additionally, wires or strands can be directly soldered to the contacts, which has the advantage of enabling you to connect the 18650 LiPo batteries in any series or parallel configuration.
Warning: It is important to note that a short circuit or incorrect connection of a LiPo battery can lead to destruction or fire.
Technical details:
Color: Black
Type: CB-18650-PC4
Compatible battery type: 18650 without protection circuitry
Distance between relaxed contact springs: 62.8 mm
Minimum battery length: 65 mm
Maximum battery length: 66 mm
Dimensions: 77.5 x 40.2 x 22.3 mm
Weight: 14 g
Delivery includes:
1x 2-cell 18650 battery holder.
Item number | 38737306 |
Manufacturer | Purecrea |
Category | Electronics supplies + Casing |
Release date | 21.9.2023 |
Sales rank in Category Electronics supplies + Casing | 24 of 31055 |
Colour | Black |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x 2-way 18650 battery compartment, Battery holder |
Length | 77.50 mm |
Width | 40.20 mm |
Height | 22.30 mm |
Weight | 14 g |
