Product details

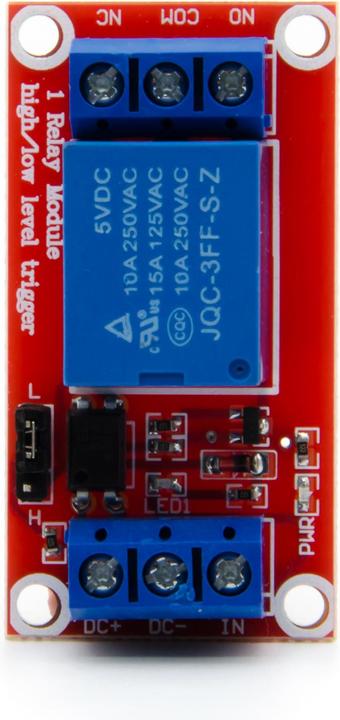

With this 1-channel relay module you can easily control large loads with 5V of your Arduino or Raspberry Pi. The control lines of the relay are connected to screw terminals on the board.
The load to be switched is also connected via screw terminals. For safety reasons, you should only operate the relays up to 30V. You can use a jumper on the relay module to switch the control from low level trigger to high level trigger.
Technical details:
Control voltage IN: 3.3V or 5V DC
Supply voltage DC+ DC-: 5V DC
Relay current for switching approx. 5 to 10 mA
1x relay (switching capacity DC: max. 30V/10A, AC: max. 250V/10A)
Relay with 3 contacts (change-over switch)
Direct control with microcontroller via digital output (IN on the module)
3 screw terminals for connecting the load
Status LED for indication of relay status
4x mounting holes 3mm
Size: 50 x 26 x 19mm
Weight: 18g
Scope of delivery:
1x 1-channel relay module.
Technical details:
Control voltage IN: 3.3V or 5V DC
Supply voltage DC+ DC-: 5V DC
Relay current for switching approx. 5 to 10 mA
1x relay (switching capacity DC: max. 30V/10A, AC: max. 250V/10A)
Relay with 3 contacts (change-over switch)
Direct control with microcontroller via digital output (IN on the module)
3 screw terminals for connecting the load
Status LED for indication of relay status
4x mounting holes 3mm
Size: 50 x 26 x 19mm
Weight: 18g
Scope of delivery:
1x 1-channel relay module.
| Item number | 25475141 |
| Manufacturer | |
| Category | |
| Release date | 5/4/2023 |
| Sales rank in Category Electronics modules | |
| Maximum order quantity | 63 |
| Weight | 18 g |
