Powerwalker VFD 600 APFC 600VA / 300W Offline UPS Active Power Factor Correction

600 VA, 300 W, Standby UPS
Ratings
BrandMore from Powerwalker
Delivered between Sat, 7.6. and Wed, 2.7.

Product details

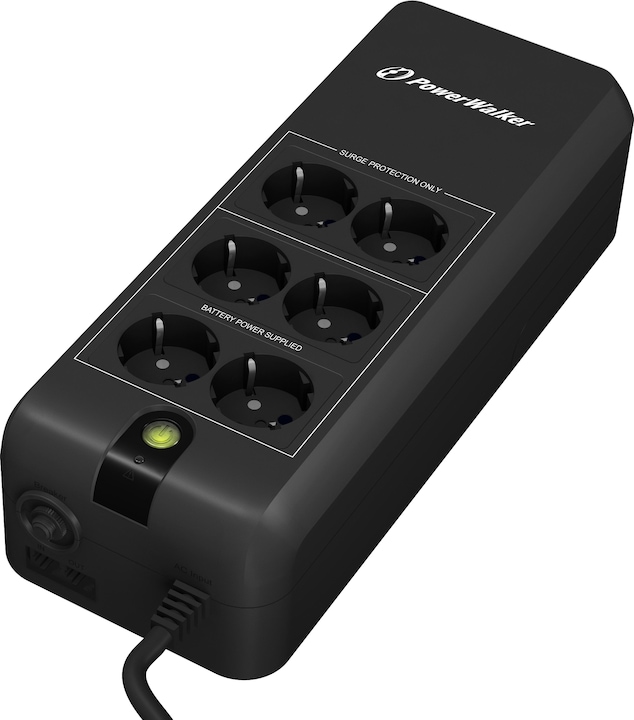

PowerWalker VFD 600 APFC Standby/Off-Line UPS System

The PowerWalker VFD (Voltage and Frequency Dependent) series offers a simple and cost-effective way to protect your devices from power fluctuations and outages. If the input voltage deviates by more than 10% from the set typical input voltage, the UPS switches to battery mode, supplying connected devices with power generated from the battery. Once the input voltage returns to normal levels, the UPS switches back to mains operation. In the event of a complete power failure, the UPS can continue to power connected devices with battery-generated AC for several minutes. The duration of this power supply depends on the specific model and the power consumption of the connected devices.

Features:

  • 600VA Standby/Off-Line UPS
  • Full power for APFC power supplies

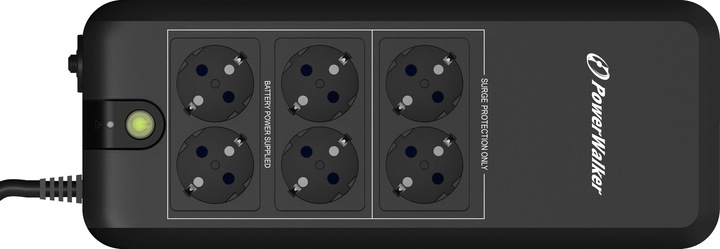

  • 6x Schuko outputs, 4x battery-supported
  • Most economical backup solution during power outages

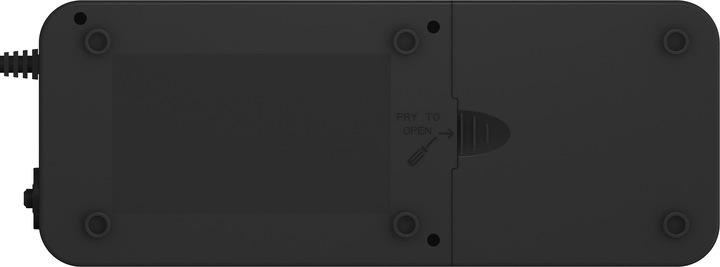

  • Battery compartment for easy battery replacement.

Key specifications

Operating time at full load
2 min
Model
Desktop
Scope of application
Server room
Item number
10344576

General information

Manufacturer
Powerwalker
Category
UPS
Manufacturer no.
10120410
Release date
22.1.2019

UPS properties

UPS type
Standby UPS
Power output
300 W
Output power capacity
600 VA
Model
Desktop
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room

Connections

Connections
Ethernet
Data ports
RS-232 (1x)

Mains supply properties

input voltage
170 - 280 V
output voltage
230 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
overvoltage protection
45 J
Efficiency full load
95 %
Efficiency battery operation
95 %

Operating conditions

Operating temperature
0 - 40 °C
Operating humidity
0 - 95%

Battery properties

Battery
Battery
Number of cells
1 x
Voltage
12 V
Capacity
5 Ah
Charging time
10 h
Operating time at full load
2 min
Operating time at half load
8 min

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Instruction manual
Items per sales unit
1 x

Product dimensions

Height
86 mm
Weight
2.80 kg
Width
125 mm
Length
320 mm

Package dimensions

Length
38.30 cm
Width
19.40 cm
Height
16.40 cm
Weight
3.20 kg
