Powerfilm Solar module F16-3600

The solar cell is mounted on water-resistant fabric that can be easily and quickly folded. Its extreme durability allows for use in harsh environments.

Advantages:

• Compact, lightweight, robust.
• Easy to unfold and store.
• Generates power even in diffuse lighting.
• Light-sensitive technology ensures better output in the early morning and evening.
• Designed and manufactured in the USA.

Application Instructions:

• Align as much as possible with the sun.
• Store in a cool and dry environment.
• The solar module is not designed for use in the rain.
• Only fold and store the solar module when dry.
• Occasionally cleaning the solar module increases output.

Technical Data:

• Manufacturer designation: F16-3600
• Rated power Pmax: 60Wp
• Voltage at maximum power Vmp: 15.4V
• Open circuit voltage Voc: 21.9V
• Current at maximum power Imp: 3.6A
• Short-circuit current: 4.6A
• Dimensions folded: 331 x 191 x 69 mm

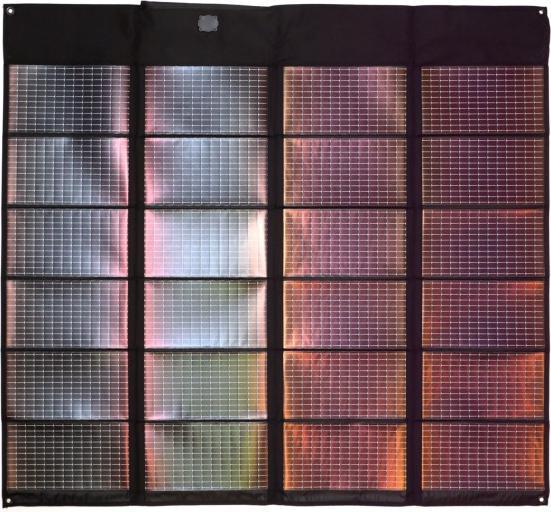

• Dimensions open: 1,134 x 1,309 mm
• Weight: 1.2kg
• Color: Khaki
• Certifications: CE, MIL-STD-810G, RoHS, Berry Amendment Compliance
• Connector type: Delphi Weatherpack.
