Product details

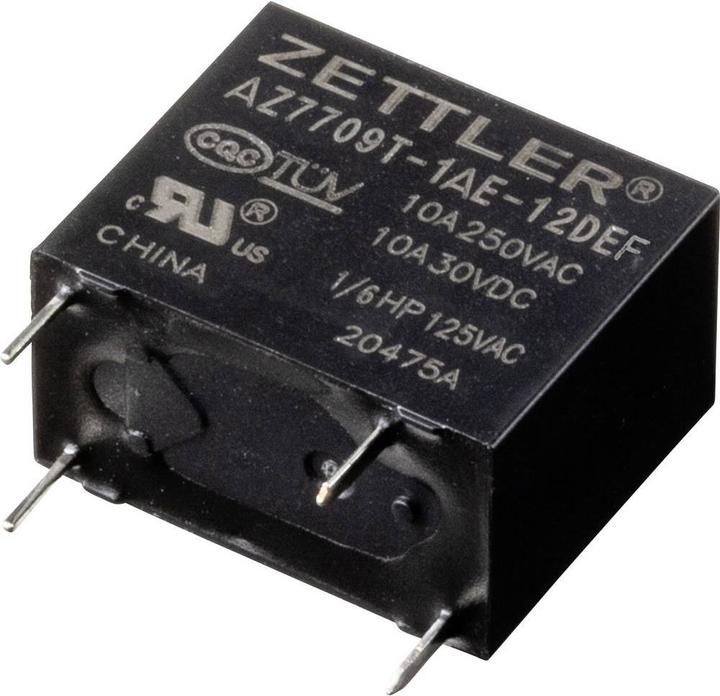

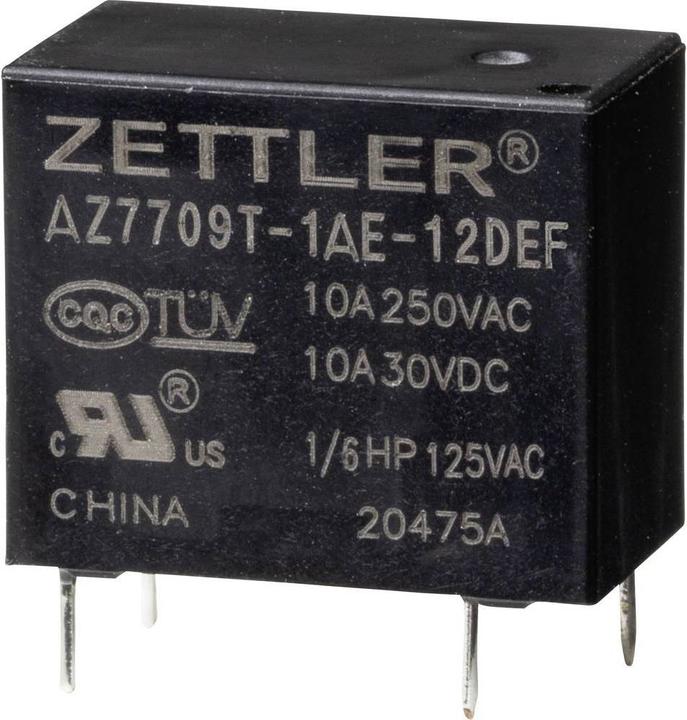

The Zettler power relay, model AZ7709T-1AE-12DEF, is a high-quality power relay designed for various applications in electrical engineering. With a rated voltage of 12 V/DC and a maximum switching current of 10 A, this relay provides reliable performance for demanding switching operations. It is monostable and features a pick-up voltage ranging from 8.4 V/DC to 15.6 V/DC, allowing for flexible integration into different systems. The isolation voltage of 500 V ensures additional safety and reliability during operation. The relay is designed for temperatures from -40 °C to 85 °C, making it suitable for use in various environments. With a compact design and robust construction, this power relay is an excellent choice for professional applications.

  • Monostable operation with a single coil control type
  • Maximum switching power of 300 W and 2500 VA
  • Durable contact material made of AgSnO for high reliability
  • Temperature range of -40 °C to 85 °C for versatile applications
  • RoHS compliant, ensuring environmentally friendly materials.

Key specifications

Relay type
Power contactor
input voltage
15.60 V
Output voltage
12 V
Electric current output
10 A

General information

Item number
21609345
Publisher
Zettler
Category
Relays
Manufacturer no.
2349915
Release date
3.8.2022

Relay properties

Relay type
Power contactor
input voltage
15.60 V
Output voltage
12 V
Electric current output
10 A
Resistor
320 Ω
Max. Switching capacity
0.30 kW

Smart home features

Smart home
Not compatible

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.48

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
18.40 mm
Width
10.20 mm
Height
15.50 mm
