Portkeys LH7H

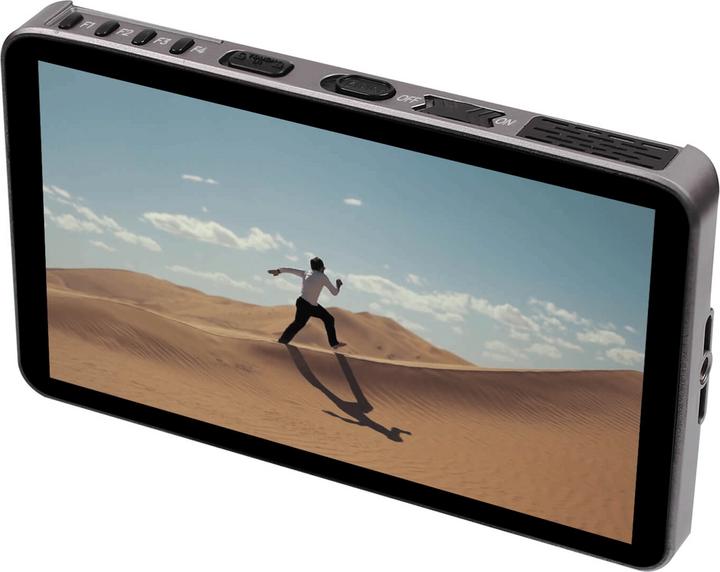

The Portkeys LH7H is a lightweight 7-inch touchscreen camera monitor, perfect for content creators and filmmakers. Weighing only 245 grams due to its polycarbonate and ABS housing, it also features hardened glass for scratch protection. With dimensions of 176.2 x 103.8 x 18.4 mm, the LH7H is very compact. It is packed with professional tools and customizable function buttons.

The monitor impresses with its precise and true-to-life color reproduction, offering high detail without color casts, and provides professional monitoring functions suitable for outdoor shooting.

Main features:

• 7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a contrast ratio of 1000:1
• Maximum brightness of 1000 nits, viewing angle of 85 degrees
• 1x 4K HDMI input (4K DCI at 24 fps, 4K UHD at 30 fps, Full HD 1080 at 60 fps, 4K oversampling to 1080p)
• 1x HDMI output (Full HD 1080 at 60 fps)
• Professional tools: Waveform, histogram, zebra, peaking, ARRI false color, and custom mode
• 3D LUT monitoring and 3D LUT HDMI output; loading LUTs via USB is possible
• Image capture and overlay, anamorphic image de-squeeze
• Frame guides, grid, cropping, aspect ratios, and automatic image flipping

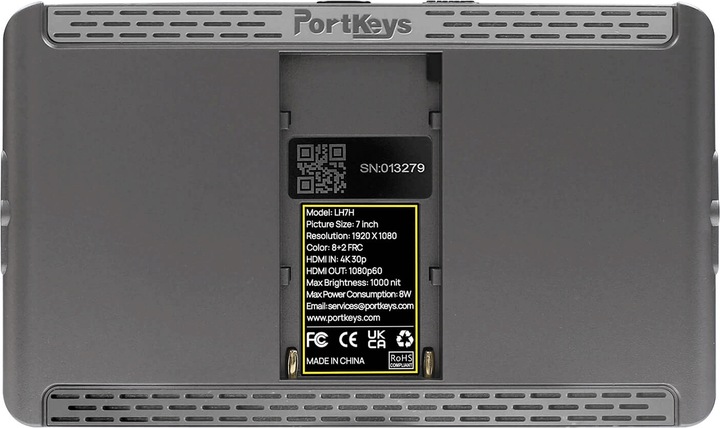

• Battery plate for Sony NP-F batteries
• 7.4 - 24 V power input (DC 5.5 mm socket), 5 V USB-A power input, 1x 3.5 mm audio output
• Low power consumption of only 8 W
• Lightweight and robust ABS plastic housing weighing just 245 g

Included in the package:
1x LH7H monitor
1x Safety Box
1x Micro USB flash drive
1x A to A HDMI cable
1x Screen cleaning wipe
2x Screen protector
1x MH-2 mount.
