Play-Zone Wayne and Layne Bricktronics Breakout Board Actual product image
CHF 9.85was 11.–1

Play-Zone Wayne and Layne Bricktronics Breakout Board

Description

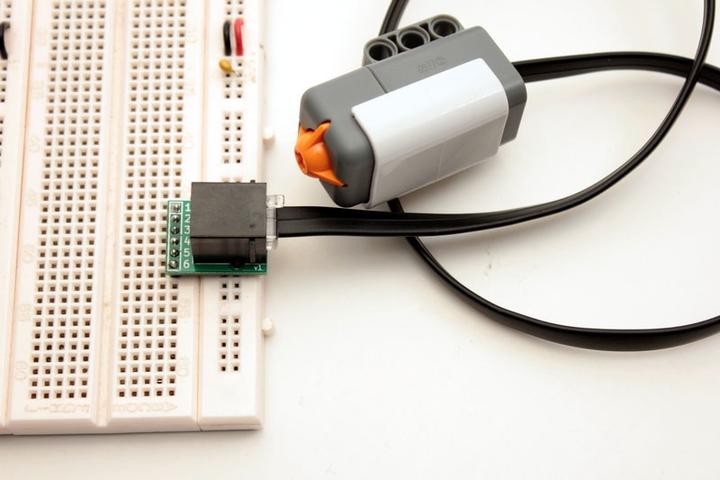

Want to connect LEGO Mindstorms NXT motors or sensors to a breadboard,
or prototype your own sensors for a LEGO Mindstorms NXT brick? The

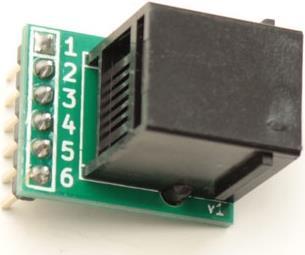

Bricktronics Breakout Board Kit breaks out the pins from a custom,
injection-molded NXT-compatible socket to standard 0.1" pinout.

CONTENTS

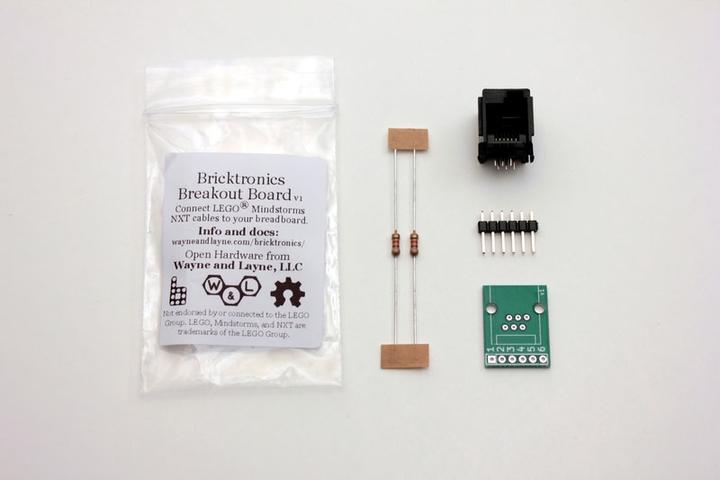

This contains a Bricktronics Breakout Board printed circuit board, a
custom NXT-compatible socket, a 6 pin male header and two 82 k
resistors, which you'll need if you make your own I2C peripherals for
the NXT.

BUILD IT

If you purchase the unassembled version, it requires basic
through-hole soldering skills. At a minimum, you'll need a soldering
iron, and solder. Clear instructions [1] are available at the
Bricktronics Breakout Board project webpage.

It usually takes less than ten minutes to build, but it may take more
or less time depending upon your experience with soldering.

Links:
------
[1] http://www.wayneandlayne.com/projects/bricktronics-breakout
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer Play-Zone
Product type Electronics modules
Item number5999166
Manufacturer no.P00000710
