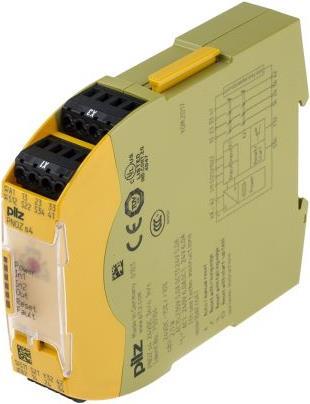

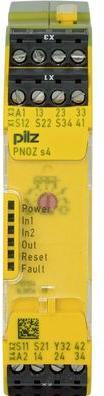

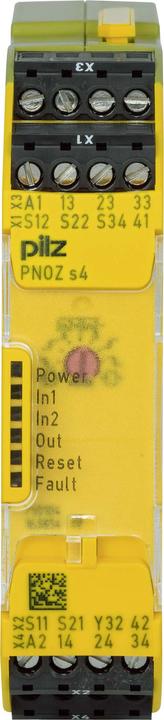

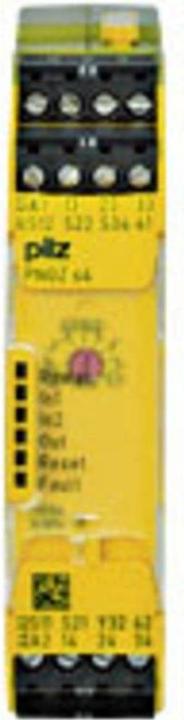

Pilz SIGMA SAFETY RELAY, 24VDC, 3NO 1NC 1SC

Ratings
Delivered between Sat, 12.7. and Sat, 26.7.
9 pieces in stock at supplier
free shipping

Product details

The PNOZ s4 product line from Pilz includes safety relays for monitoring emergency stop buttons, safety doors, and light curtains. These safety relays meet the requirements of EN 60947-5-1, EN 60204-1, and VDE 0113-1 and can be used as safety components according to the lift directives 95/16/EC and EN 81-1.

Forced-guided relay outputs: 3 safety contacts (N/O), 1 auxiliary contact (N/C) without delay

1 semiconductor output

Connector for connecting a contact expansion block PNOZsigma

Operating modes can be set via a rotary switch

LED indicator lights

Plug-in connection terminals: spring-loaded terminal or screw terminal

Supply voltage: 24V DC or 48V AC/DC up to 240V AC/DC

Applications: Industry, power management, automation and process control, safety.

Key specifications

input voltage
24 V
Scope of delivery
1 piece
Output voltage
24 V
Output current type
DC
Electric current output
6 A
Item number
9869658

General information

Manufacturer
Pilz
Category
Relays
Manufacturer no.
PNOZ s4 24VDC 3 n/o 1 n/c
Release date
8.10.2018
External links
Manufacturer's site (de)

Relay properties

input voltage
24 V
Output voltage
24 V
Electric current output
6 A
Output current type
DC
Manufacturer Type
PNOZ S4 750104

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
122 mm
Width
100 mm
Height
25 mm
Weight
190 g

Package dimensions

Length
12 cm
Width
9.50 cm
Height
2.30 cm
Weight
194 g
