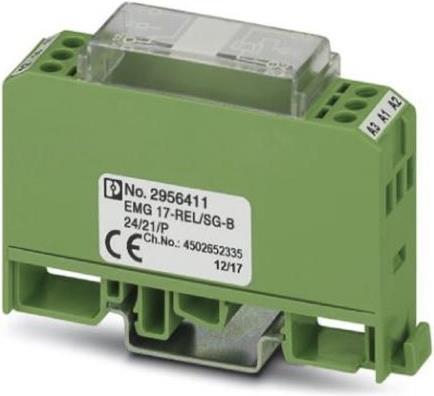

Phoenix Contact Relay Module Switching Relay Input 24vdc

Ratings
BrandMore from Phoenix Contact
Delivered between Fri, 24.4. and Fri, 1.5.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Output voltage2

Product details

Contact arrangement: 1-pole changeover contact
Mounting type: Chassis mounting
Connection type: Screw
Length: 17.5 mm
Series: Varioface
Height: 75 mm
Dimensions: 17.5 x 62.5 x 75 mm
Contact material: Silver alloy
Input current: 8 mA
Operating temperature min: -40 °C

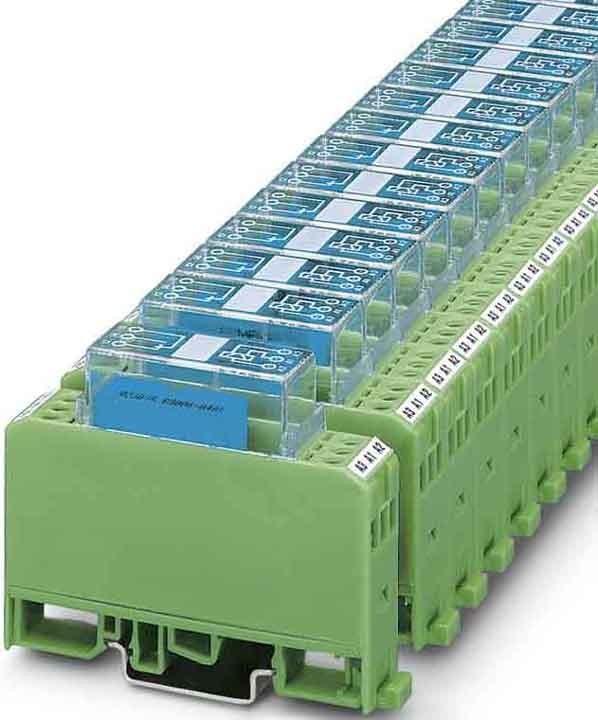

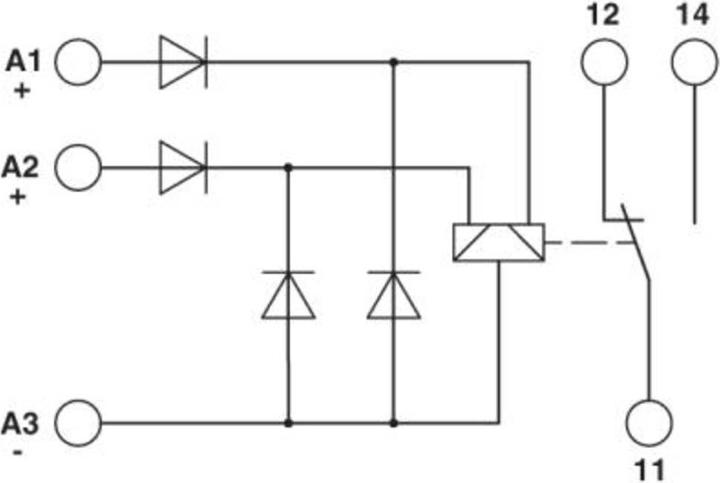

EMG series. Relay modules series REL-KSR with soldered miniature switching relays, relay modules series RELS-K1/2 with plug-in socket for KAMMRELAIS® size, and relay modules RELS/IR with plug-in socket for industrial relay size. REL-KSR series: Small/medium to large loads, safe insulation according to DIN EN 50178 between coil and contact, integrated input circuit and fault suppression circuit, operating temperature range: -20 °C to +40 °C. RELS-K1/2 series: Rated input voltage: 24 V dc, light indicator, operating temperature range: -20 °C to +50 °C, attenuation and reverse polarity protection diode, screw terminal. RELS/IR series: Nominal input voltage: 24 V dc, signal lamp, operating temperature range: -20 °C to +50 °C, attenuation and polarity reversal protection diode, screw connection.

Key specifications

Relay type
Switching relay
input voltage
24 V
Output voltage
24 V
Number of poles
1x

General information

Item number
9905066
Manufacturer
Phoenix Contact
Category
Relays
Manufacturer no.
2956411
Release date
16.10.2018

Relay properties

Relay type
Switching relay
input voltage
24 V
Output voltage
24 V
Switching function
Changer
Number of openers
1x
Number of closers
1x
Number of poles
1x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
21P, Relay module EMG17-REL, SG-B24

Product dimensions

Length
62.50 mm
Width
17.50 mm
Height
75 mm
Weight
46.84 g
