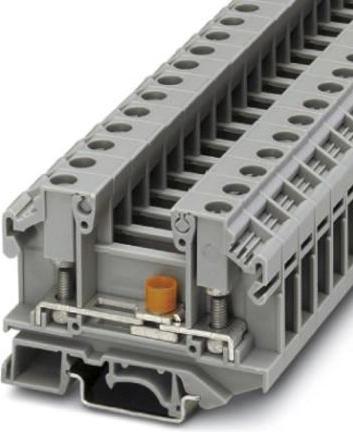

Phoenix Contact 6mm bolt type terminal block

Series: OTTA
Wire size: 26 → 10 AWG
Cable cross-section: 0.1 → 6 mm²
Color: Gray
Rated current: 41 A
Number of levels: Single
Connection type: Screw
Operating voltage: 800 V

The marking strip contains 100 blank markings (1 unit with 10 strips, each strip contains 10 blank markings for a total of 100 blank markings). The specified height for the terminal blocks refers to mounting on a DIN rail with G-section (for top hat profile rails, the heights are 52 mm and 64.5 mm). Screw connection terminals. These terminal blocks are suitable for crimp connection terminal rings in M4 (6 mm² CSA) or M6 (25 mm² CSA). A quick and secure connection is facilitated by the pivoting cover wings that hold the nut. When the wings are flipped up, the screw is ready to receive the ring terminal. After connecting, the wings can be closed, and the nuts can be tightened with a screwdriver. The folding wings cover the live metal parts, including the insulated ring terminal, to protect against electric shock. They can also be marked with the marking strip for easy identification. The screws are secured with hidden, non-loosening, spring-loaded spacers to prevent loosening due to vibrations. The universal base allows for mounting on both top hat rails and G-profile rails.
