Phocos Solar Charge Controller CIS20-1.1

Solar panel voltage = 50V
Rated current max. / 12 V panel = 20A
Rated current max. / 24 V panel = 20A
Dimensions = 82 x 20 x 58mm
Depth = 58mm
Length = 82mm
Width = 20mm

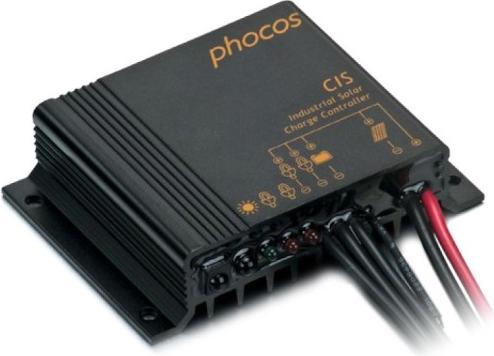

Phocos CIS series solar charge controller (5-20 A). Photovoltaic systems exposed to extreme weather and environmental conditions (streetlights and navigation buoys) have an increased risk of damage to power electronics. For better battery charge control in such conditions. Phocos has developed a potted charge controller (IP68) to prevent corrosion: the CIS. CIS is an industrial grade charge controller suitable for all practical PV applications. High quality, 4-stage PWM charging is combined with helpful features such as: Low voltage disconnect, flexible load timer functions and multi-LED system status indication. Can be ordered with one output as on/off switch and one output with dimmer function (CIS). Corrosion resistant epoxy encapsulated PCB (IP68) Compact aluminum housing Infrared remote programming accessory (CIS-CU) Intelligent timer function with lighting control available Four-stage battery charging (main contact, float, boost, adjustment), temperature compensated Automatic detection of system voltage: (12/24V) Automatic memory function: two voltage separation levels. The CIS has no moving parts, switches or buttons. Settings such as battery types, deep discharge thresholds, or timer settings can be made quickly and easily via the infrared remote control accessory. All devices are usually connected to the controller via included conductors rather than wire connections. This feature prevents the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, shocks) where components make electrical contact with the controller.
