Product details
Housing design = Cylindrical
Thread size = M30 x 1.5
Output type = Normally open contact
Sensing range = 10 mm
Connection type = Cable
Supply voltage = 5 → 30 V dc
length = 40mm
DC voltage max = 60V
Mounting type = flush mounting
Switching current = 100 mA
Housing material = Brass, nickel-plated
Shielding = Unshielded

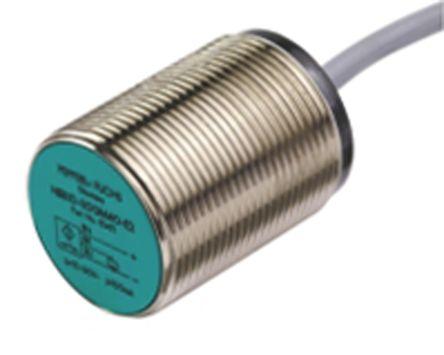

Extended sensing range. These inductive proximity sensors from Pepperl + Fuchs have a cylindrical design and are available with an extended detection range of up to 30 mm and are suitable for a wide range of applications. Features and Benefits. LED indicator Flush mountable or flush mountable IP67 Supply voltage: 10 to 30 V dc Short circuit and reverse polarity protection Pre-wired types have 2 m PVC cable Plug-in types have M12 connectors (V1).
Item number | 10102218 |
Manufacturer | Pepperl & Fuchs |
Category | Electronics modules |
Manufacturer no. | NBB10-30GM40-Z0 |
Release date | 13.11.2018 |
External links |
Module type | Sensor |
