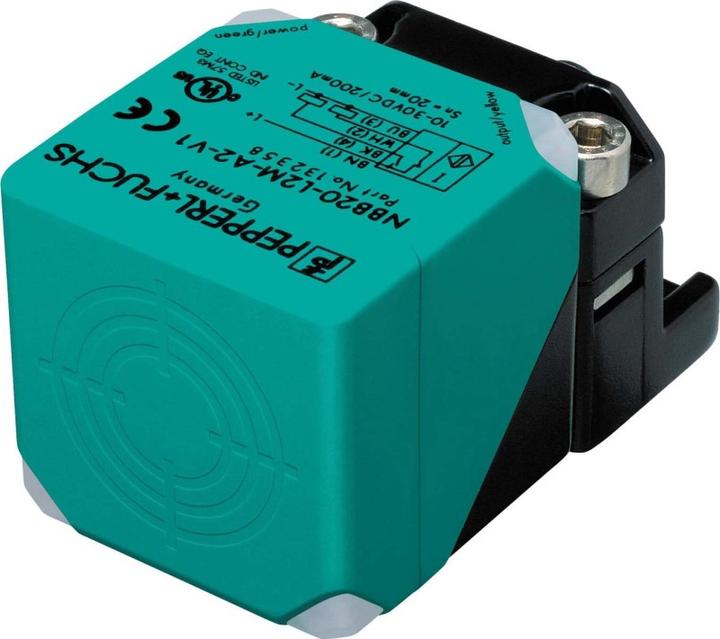

Pepperl & Fuchs Sensor inductive NBB20-L2M-E2-V1

Pepperl+Fuchs Sensor NBB20-L2M-E2-V1

Manufacturer: Pepperl+Fuchs
Description: Inductive Sensor
Type: NBB20-L2M-E2-V1
Sensor Width: 40 mm
Sensor Height: 40 mm
Sensor Length: 67 mm
Mechanical Installation Condition for Sensor: flush
Switching Distance: 20 mm
Suitable for Safety Functions: no
Switching Function Type: Normally Open (NO)
Output Type: PNP
Electrical Connection Type: M12 Connector
Number of Semiconductor Outputs with Signaling Function: 1
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: rectangular
Housing Coating: other
Cascadable: no
Max. Output Current at Safe Output: 200 mA
Supply Voltage: 10..30 V
Rated Control Supply Voltage Us at DC: 10..30 V
Voltage Type: DC
Switching Frequency: 150 Hz
With Monitoring Function for Subsequent Devices: no
Material of Housing: other
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none

Additional Details:
Switching Distance: 20 mm
Installation: flush
Switching Function: Normally Open (NO)
Output Type: PNP
Operating Voltage: 10 ... 30 V DC
Operating Current: 0 ... 200 mA
EAN: 4050143017959.
