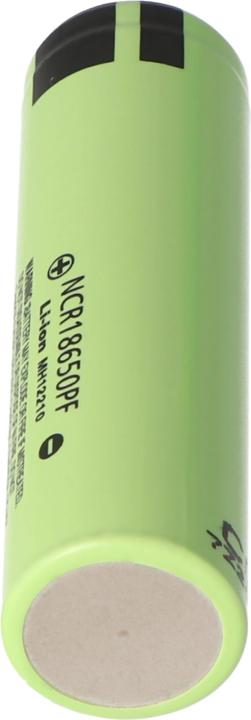

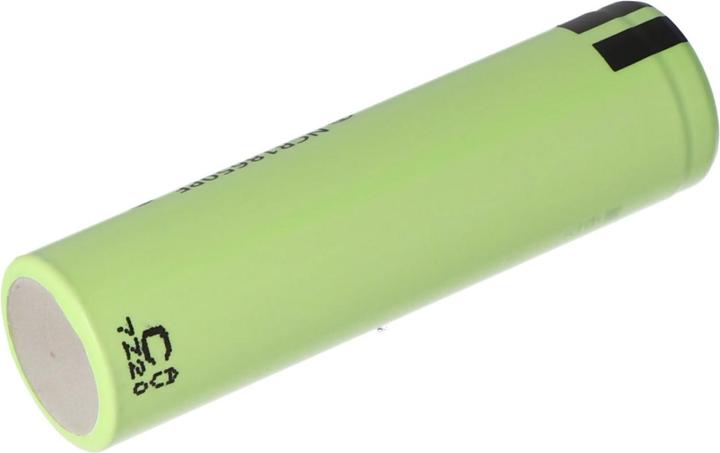

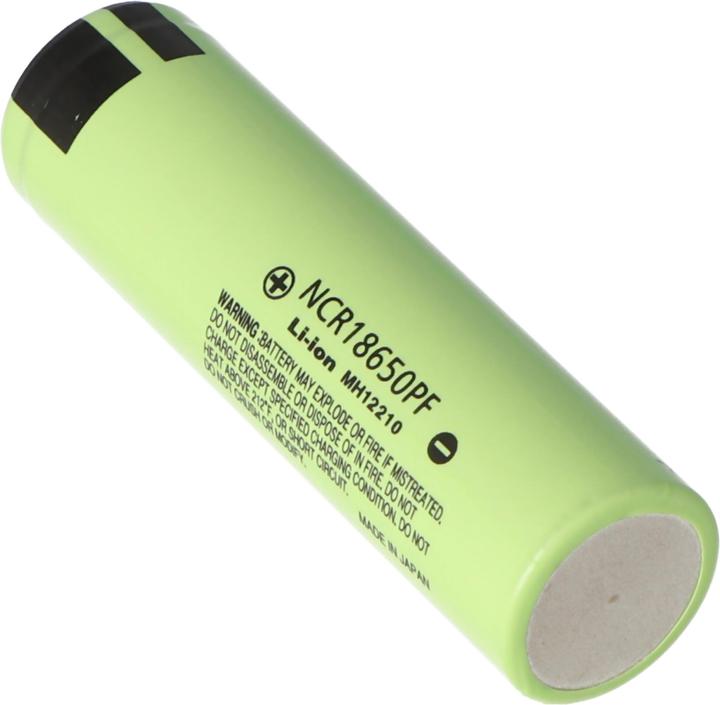

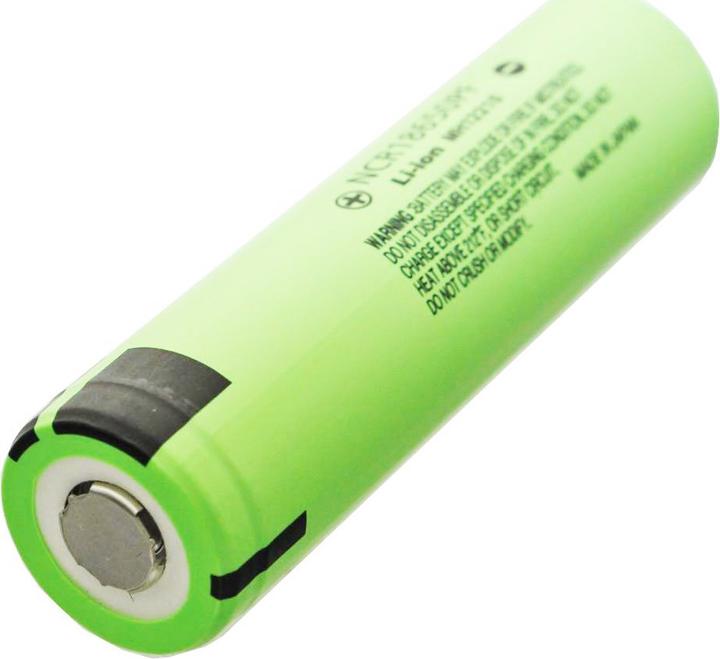

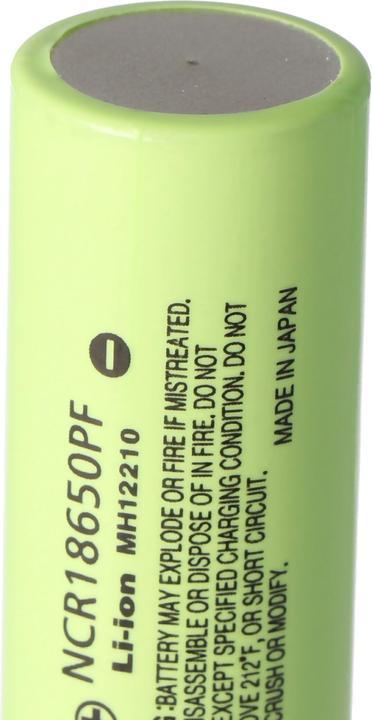

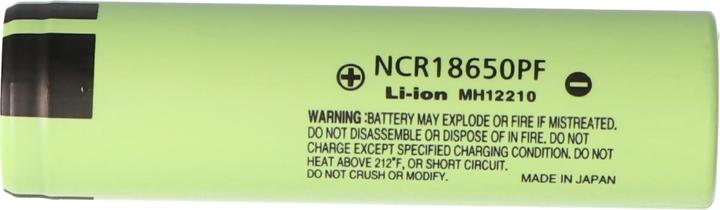

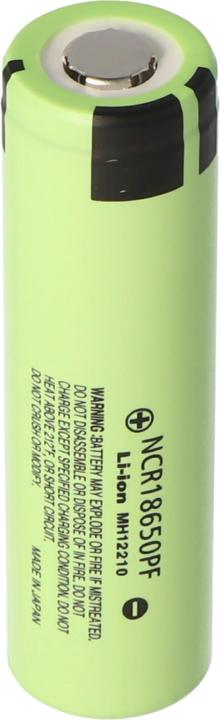

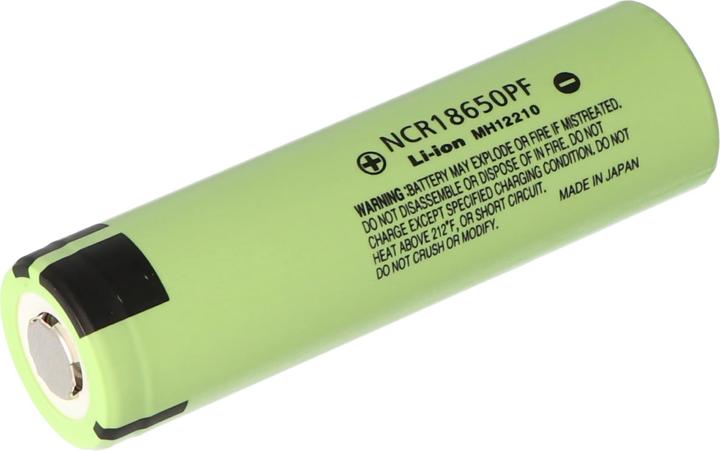

Panasonic Akku NCR18650PF - 2900mAh

The successor to the Panasonic NCR18650PD. A cell specifically developed for e-bikes and electromobility, the MH12210 with 2900mAh LiNiCoAlO2. Panasonic NCR18650PF (unprotected)

Capacity: 2900mAh
Min. Capacity: 2750mAh
Nominal Voltage: 3.7V
Charge Termination Voltage: 4.2V
Max. Discharge Current: 3C 10A
Max. Charge Current: 0.7C
Discharge Termination Voltage: 2.5V
Protection: none

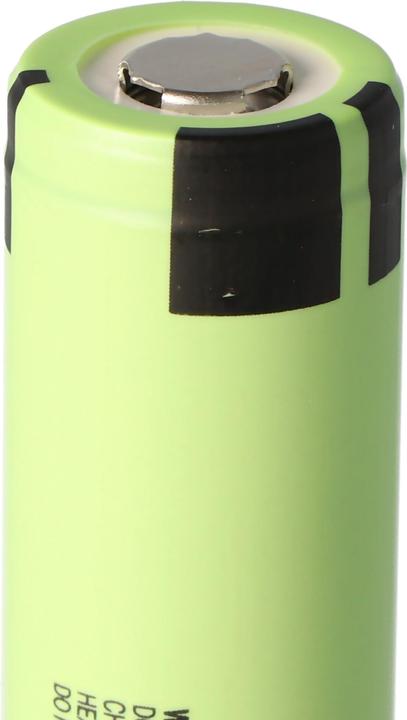

Positive Terminal: flat (Flat Top)
Chemistry: LiNiCoAl
Diameter: 18.1 mm ± 0.1 mm
Height: 64.95 mm ± 0.1 mm
Weight: 46 g ± 1 g

Charging Method: CC-CV

Test Results: Dampfakkus, Messerforum

Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Panasonic NCR18650PF - 2900mAh, 3.6V - 3.7V Li-Ion Battery"

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases the lifespan and number of charge cycles (potentially up to double). Only lithium-ion chargers should be used for charging. However, cheap chargers often have the disadvantage of not safely shutting off after the charging process ends, continuing to charge the batteries with a small current, which can be dangerous. Furthermore, batteries and accumulators should not be disposed of in household waste! Please dispose of them properly.
