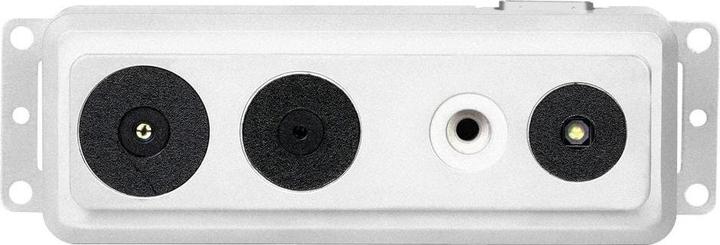

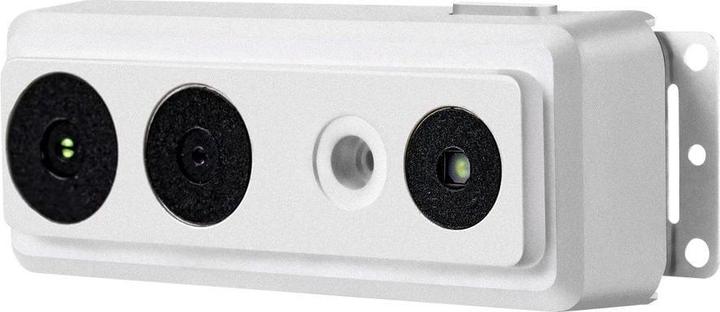

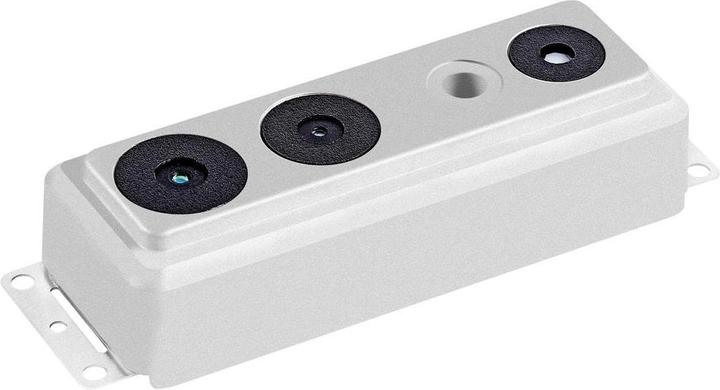

Orbbec 3D Embedded S

The Orbbec3D Embedded S is a very small 3D camera with a high RGB/image resolution of 1920 x 1080 pixels at 30 FPS. The depth images are available in a resolution of 1280 x 720 Px or 640 x 400 Px at 60 FPS. The data obtained can be used for various applications via the USB Type-C port. These cameras are already being used today in the following areas:

• Robotics / Autonomous Systems
• Quality Control
• 3D Scanners / Full Body Scanners & Handheld

This wide range of applications is made possible not only by excellent hardware but also by sophisticated software and driver packages, making the Orbbec Embedded S compatible with ROS, OpenNI2, Astra SDK, and more.

All Orbbec3D software products, such as the corresponding Windows or Linux drivers, the Orbbec3D Unity Engine, or the Body Tracking SDK, are available for free download without registration.

Advantages of the Orbbec3D Embedded S

The Orbbec3D Astra Embedded S offers a very compact design with a USB 3.0 connection compared to the Astra Stereo S and Astra Mini.

Resolution in Third-Party Software

When integrating the Orbbec3D Embedded S into a third-party platform like Unity, the "Orbbec.ini" file located in the "StreamingAssets" folder must be adjusted to the desired resolution.

Technical Specifications

• Depth Images: 1280 x 720 Px 30 FPS | 640 x 400 Px 60 FPS
• RGB/Image Resolution: 1920 x 1080 Px
• FOV: 67.9H 45.3V 78D
• Dimensions: 68.6 x 22.35 x 14.8 mm
• Measurement Range: 0.25 - 1.5 m
• Data & Power Supply: USB Type-C
• Power Consumption: < 2.2 W

Delivery Contents

• 1 x Orbbec Astra Embedded S 3D Camera.
