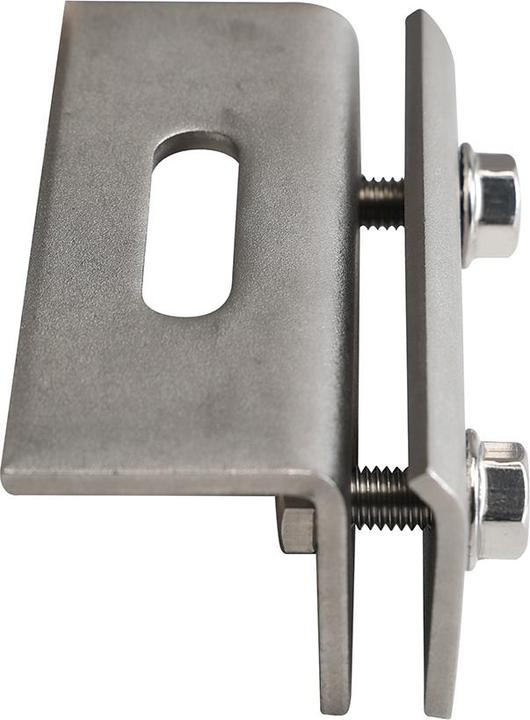

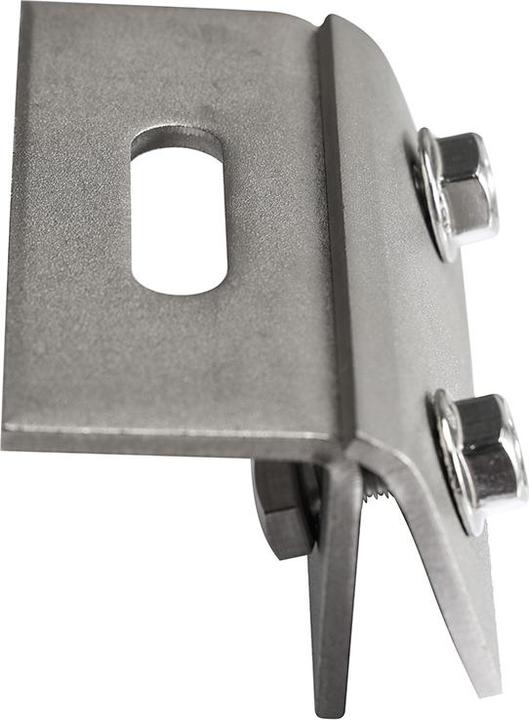

Offgridtec PV Befestigungsklemme für Stehfalz Blechdach Klemme + Adapterplatte vormontiert mit Schrauben

The Offgridtec mounting clamp, equipped with two screws, is specifically designed for securing mounting rails to sloped metal roofs with standing seam profiles. With a clamping range of 3.5 mm, it is well-suited for the most common types of roofs. The delivery comes in a pre-assembled state, allowing for straightforward installation directly on the roof without additional preparatory work. The seam clamp is an essential fastening element for the installation of aluminum mounting rails for a photovoltaic system. It ensures the secure attachment of the rails on sloped roofs made of zinc, aluminum, or steel that feature standing seam metal. This clamp provides a stable foundation for the entire mounting structure, on which the solar modules are firmly installed.

Features of the mounting clamp:

• Made of stainless steel
• Weather-resistant
• Maximum stability and durability
• For metal sloped roofs with standing seam profiles
• Pre-assembled
• Ready for immediate installation

Technical specifications:

• Material: Stainless steel
• Grade: A2 / 1.4301
• Clamping range: 3.5 mm
• Thickness: 3 mm
• Dimensions: 100 x 40 x 40 mm
• Long hole dimensions: 40 x 11 mm for 2x M10 screws (not included)
• Weight: 0.36 kg

Delivery includes:
1x clamp with adapter plate
2x screw M8x25
2x nut M8.
