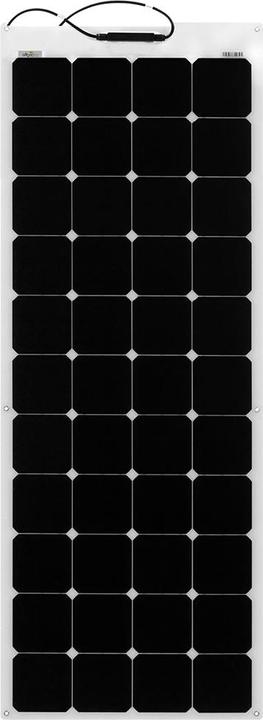

Offgridtec ETFE SPR-F 165W 27V marine solar cell flexible

The Offgridtec 010905 ETFE SPR-F 165W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for the motorhome and specifically for marine use on sailing yachts, motor yachts and other types of boats.

The module is best suited for 12V system voltage, in conjunction with an MPPT charge controller. The ETFE 165W 12V solar cell is semi-flexible and can be walked on when mounted completely flat.

ETFE, high-tech plastic solar glass combined with SPR high-performance cells.

The front of the solar panel is covered with a high-tech plastic layer based on ethylene-tetrafluoroethylene copolymer ETFE - a Teflon derivative (PTFE) - and offers excellent protection against harmful environmental influences and is also suitable for use in salt water environments. ETFE is lighter and at the same time more translucent than other plastic solutions on the market.

Technical properties of the ETFE SPR-F 165W solar module

• 165W nominal power at an operating voltage of 27.3V and a current of 6.05A

• Walkable and even more slip-resistant than comparable solar modules on the market, even when wet

• semi-flexible - can be bent up to a maximum of 30 degrees

• easy mounting of the solar panel by gluing or using the ring eyelets

• specially developed for long-term marine use

• ETFE High-Tec plastic ensures weight savings and a high light transmission of max. 96%.

• Junction box with IP65 protection

• Easy installation thanks to pre-assembled solar cables with MC4 plug and socket

• Small dimensions (LxWxH): 1460 x 540 x 2mm

• Mounting of the solar panel by gluing or using the ring eyelets

• Manufacturer part number (MPN): 010905

• Low weight: only 3 kg

• proven Offgridtec quality: made exclusively from premium raw materials of the highest quality grade

Scope of delivery:

Offgridtec 3-01-010905 ETFE SPR-F 165W 27V solar panel flexible.
