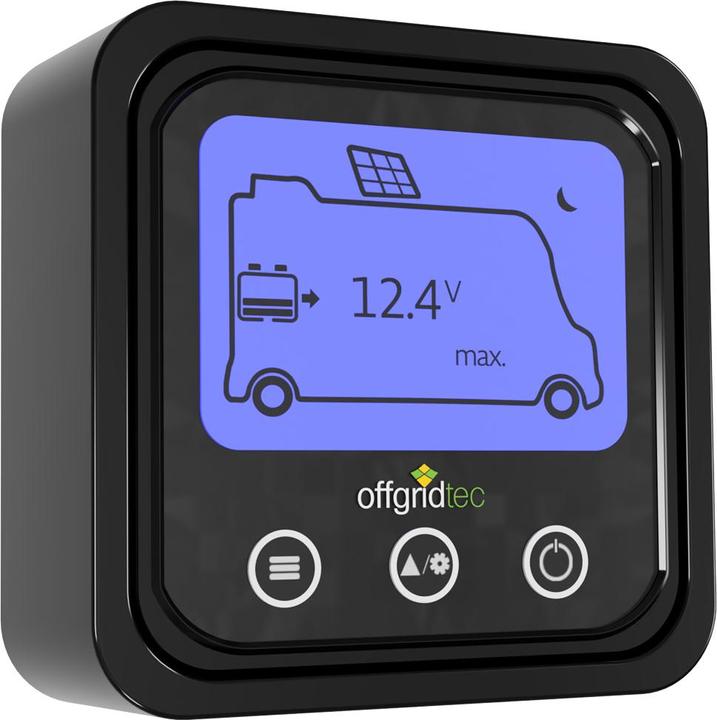

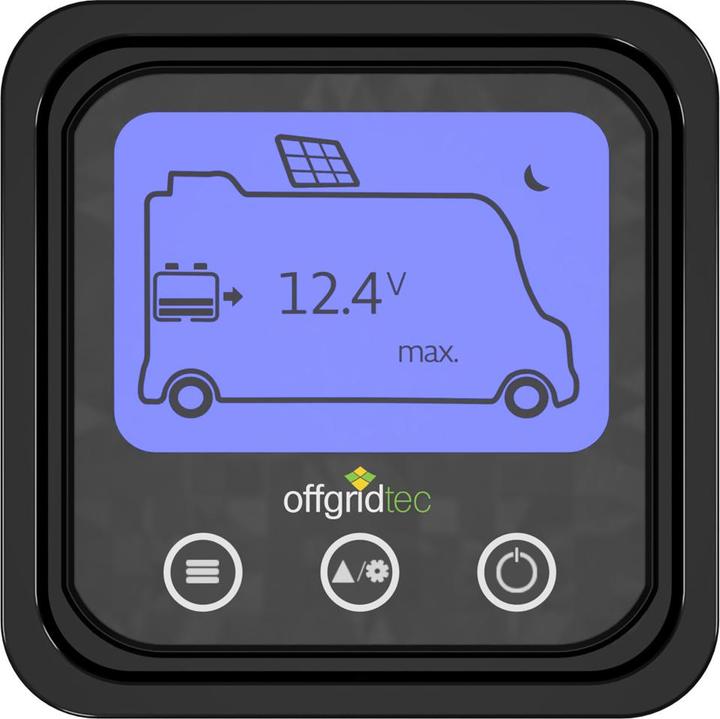

Offgridtec ® Display Remote display for MPPT Pro Duo charge controller

The LCD remote display (MPN 1-01-011205) for the Offgridtec MPPT Pro Duo solar charge controller allows for convenient reading of important performance metrics of the solar system, as well as the adjustment of several key system parameters. The display is delivered along with a mounting frame for wall installation.

Features of the Offgridtec Remote Meter:

• Real-time display of operating data and status
• Available real-time data: Solar power (W), Solar voltage (V), Energy yield (Wh), Battery voltage (V), Battery charging current (A)
• Real-time display of error information from the connected device
• Adjustable parameters for battery type and temperature directly via the remote display
• Data display in graphical form on a large display
• Simple and intuitive operation via 3 touch buttons on the front of the display
• No external power supply required

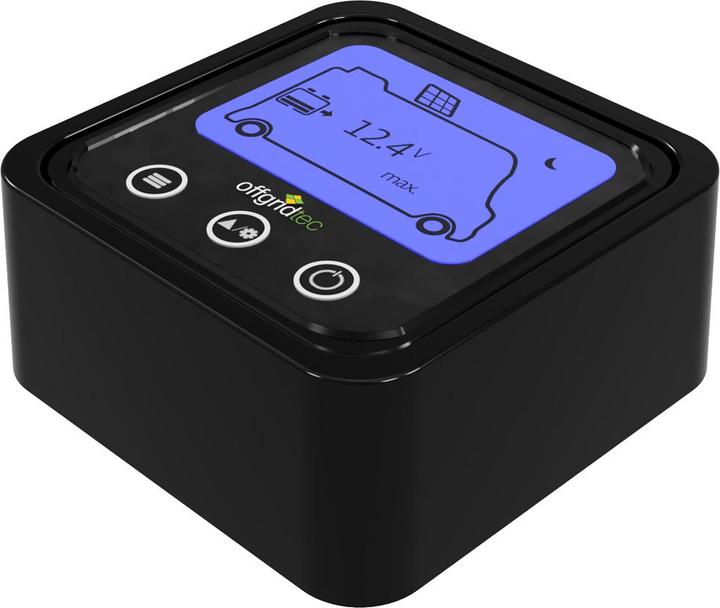

Easy mounting on wall or surface:

The remote display can be aesthetically integrated into many environments. You can screw the display along with the mounting housing directly to a wall or integrate the display directly into a surface using only the outer frame. However, the latter option requires that the surface has a suitable cutout.

Technical specifications:

• Power consumption (on): 13 mA/5 VDC
• Power consumption (off): 4 mA
• Communication transmission: RS485
• Ambient temperature: -20 °C to +70 °C
• Storage temperature range: -20 °C to +70 °C
• Weight: 0.11 kg
• Dimensions: 98.4 x 98.4 mm
• Dimensions of the base cover: 114 x 114 mm
• Protection class: IP20

Scope of delivery:

1x Offgridtec® display remote display for MPPT Pro Duo charge controller

1x 5 m connection cable from remote display to MPPT-Pro Duo solar charge controller

1x Mounting material for securing the mounting frame

1x German-language user manual.
