Offgridtec Befestigungskit mit Stehfalzklemmen für Schrägdachmontage 5 Solarpanele Rahmenhöhe 40mm

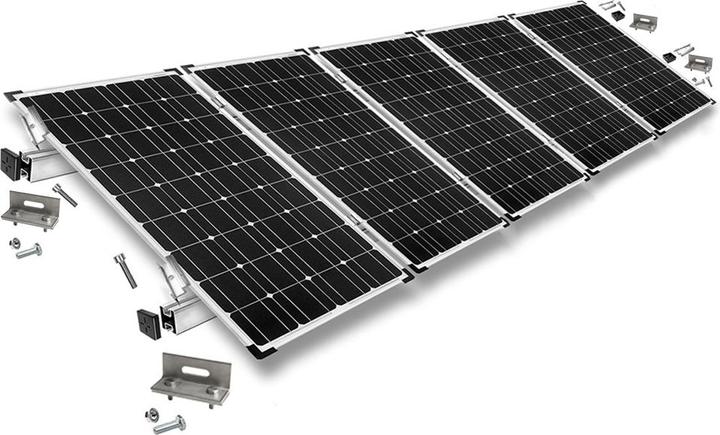

This mounting kit (MPN: 022830) from Offgridtec includes everything you need to secure modules with a maximum width of 1134 mm on standing seam roofs. The standing seam clamps included in the kit, with a clamping range of 3.5 mm, are specifically designed for the most common sloped roofs made of aluminum, steel, or zinc. The use of stainless steel and aluminum ensures a safe and durable installation. The bill of materials for the mounting kits is designed for side-by-side installation of the modules. For example, if you plan to install two rows of three solar modules each, you will need two kits for three modules each.

Choose between:

• Set for 1, 2, 3, 4, 5, or 6 solar modules (installed in series)
• Module frame height: 30 mm, 35 mm, or 40 mm

Product details:

• Mounting kit with standing seam clamp for sloped roof installation
• Clamp pre-assembled
• For a module length of up to 1134 mm
• Weather resistant
• Designed for series installation
• One additional kit for each additional row
• Modules are not included in the delivery

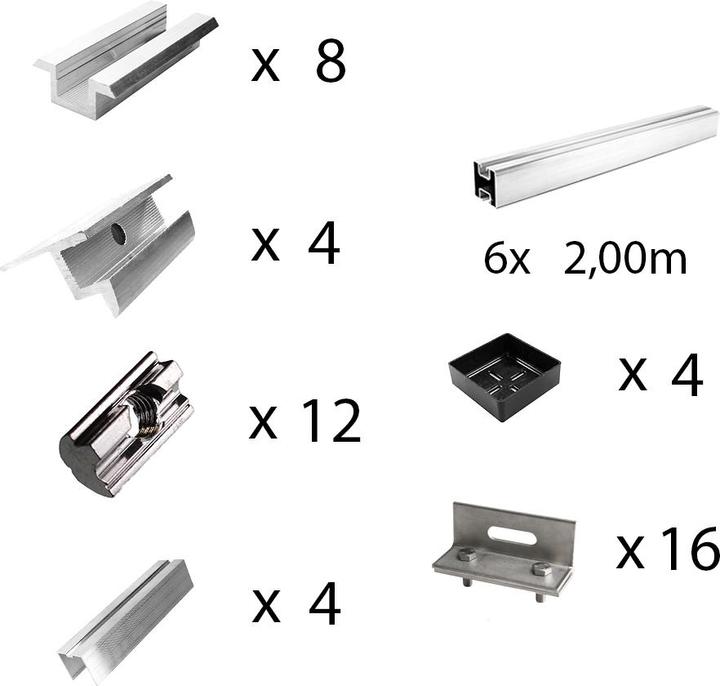

The mounting kit includes:

• Standing seam clamp (stainless steel)
• Solar profile rails (aluminum)
• End clamps (aluminum)
• T-nuts (aluminum)
• End caps

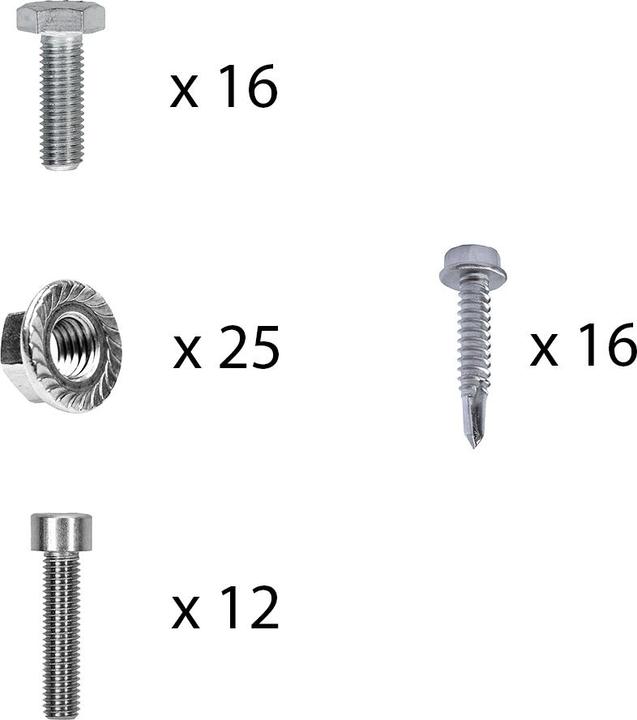

• All necessary screws and nuts.
