OEM Tal220

Sensor
Ratings
Delivered between Tue, 3.6. and Thu, 5.6.
Only 4 items in stock at supplier

Product details

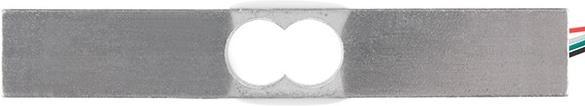

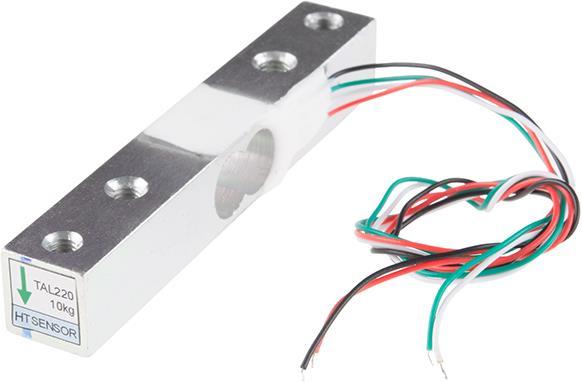

This straight bar load cell, sometimes called a strain gauge, can translate up to 10 kg of pressure (force) into an electrical signal.

Each load cell measures the electrical resistance that changes in response to, and is proportional to, the strain (e.g., pressure or force) applied to the bar. With this gauge, you will be able to determine how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

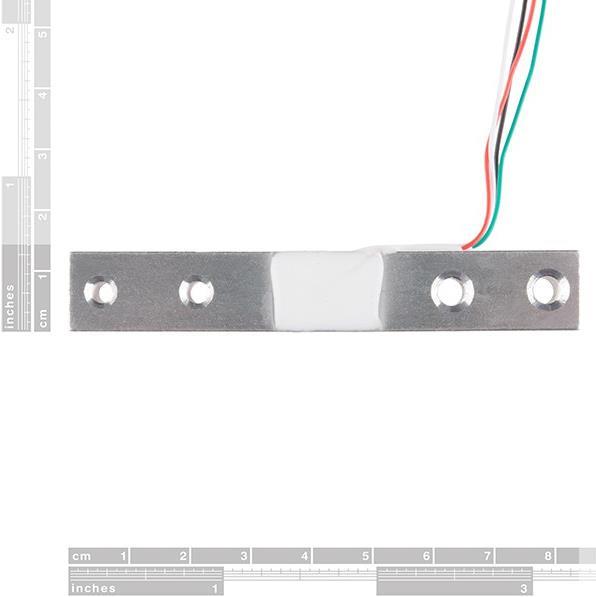

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 10 kg. These load cells have four strain gauges that are connected in a Wheatstone bridge formation. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells offer an IP66 protection rating and feature two M4 and two M5 sized thru holes for mounting purposes.

Key specifications

Sensors
Pressure sensor
Compatible hardware
Various
Item number
8028120

General information

Manufacturer
OEM
Category
Electronics modules
Release date
10.7.2015

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Sensor
Sensors
Pressure sensor

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
80 mm
Width
12.70 mm
Height
12.70 mm
Weight
150 g

Package dimensions

Length
9.50 cm
Width
6 cm
Height
1.50 cm
Weight
32 g

30-day right of return
36 Months Warranty (Bring-in)
