Product details

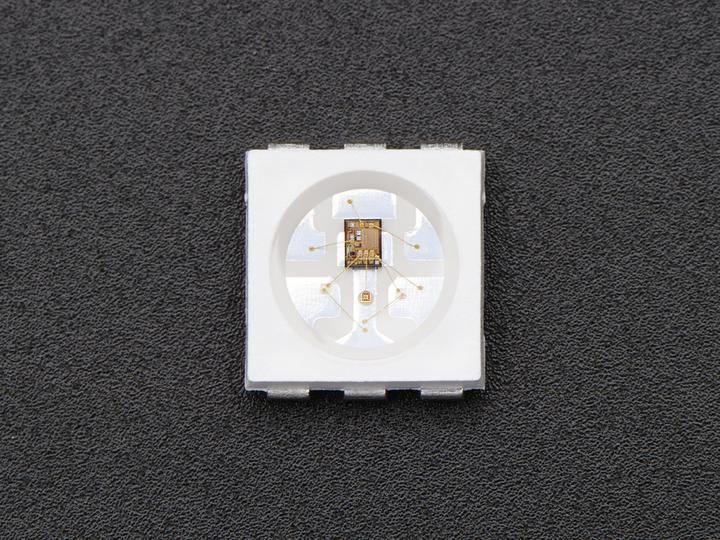

Make your own smart LED arrangement with the same integrated LED that

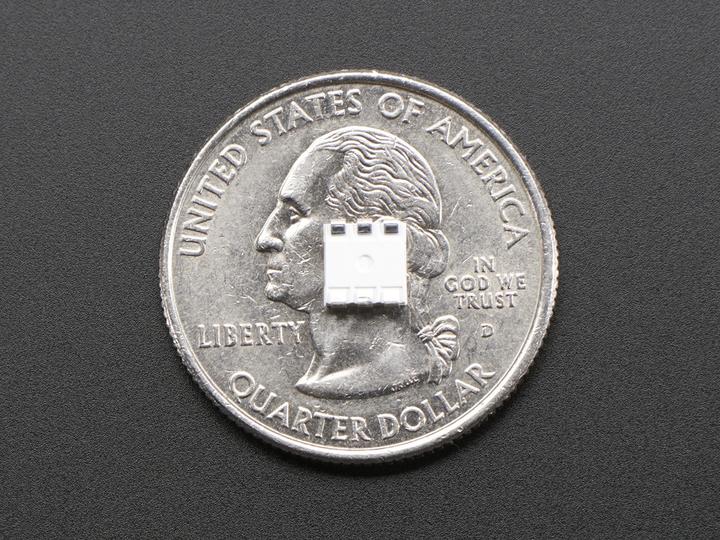

is used in our NeoPixel strip and pixels. This tiny 5050 (5mm x 5mm)
RGB LED is fairly easy to solder and is the most compact way possible
to
is used in our NeoPixel strip and pixels. This tiny 5050 (5mm x 5mm)
RGB LED is fairly easy to solder and is the most compact way possible
to
integrate multiple bright LEDs to a design. The driver chip is
inside the LED and has ~18mA constant current drve so the color will
be very consistent even if the voltage varies, and no external choke
resistors are required making your design minimal. Power the whole
thing with 5VDC and you're ready to rock.
This is the S revision of the WS2812 LED chips with 6 pins!
The LEDs are 'chainable' by connecting the output of one chip into the
input of another - see the datasheet for diagrams and pinouts. To
allow the entire chip to be integrated into a 6-pin package, there is
a single data line with a very timing-specific protocol. Since the
protocol is very sensitive to timing, it requires a real-time
microconroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be
used with a Linux-based microcomputer or interpreted microcontroller
such as the netduino or Basic Stamp. The LEDs basically have a WS2811
inside, but fixed at the 800KHz 'high speed' setting.

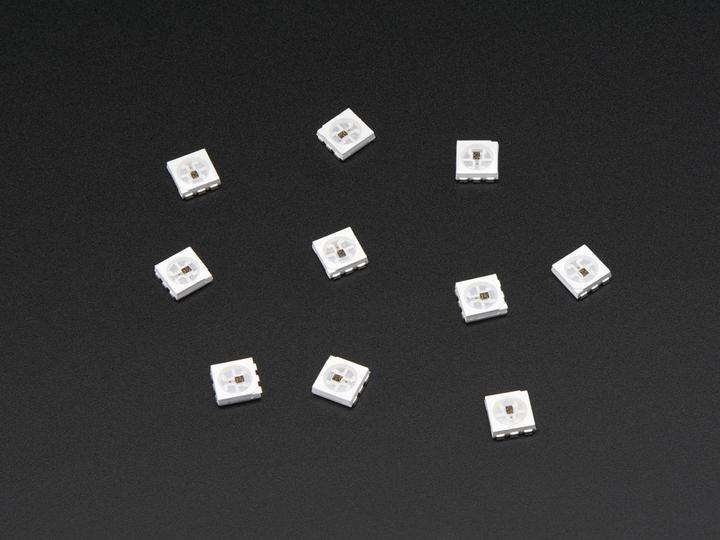

Comes in a package with 10 individual LEDs.
Links:
* Arduino Library [1]
Links:
------
[1] https://github.com/adafruit/Adafruit_NeoPixel
inside the LED and has ~18mA constant current drve so the color will
be very consistent even if the voltage varies, and no external choke
resistors are required making your design minimal. Power the whole
thing with 5VDC and you're ready to rock.
This is the S revision of the WS2812 LED chips with 6 pins!
The LEDs are 'chainable' by connecting the output of one chip into the
input of another - see the datasheet for diagrams and pinouts. To
allow the entire chip to be integrated into a 6-pin package, there is
a single data line with a very timing-specific protocol. Since the
protocol is very sensitive to timing, it requires a real-time
microconroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be
used with a Linux-based microcomputer or interpreted microcontroller
such as the netduino or Basic Stamp. The LEDs basically have a WS2811
inside, but fixed at the 800KHz 'high speed' setting.
Comes in a package with 10 individual LEDs.
Links:
* Arduino Library [1]
Links:
------
[1] https://github.com/adafruit/Adafruit_NeoPixel
| Compatible hardware | Various |
| Item number | 5998609 |
| Manufacturer | |
| Category | |
| Manufacturer no. | ada-1379 |
| Release date | 11/22/2016 |
| Compatible hardware | Various |
| Module type | Various |
| Length | 5 cm |
| Width | 1 cm |
| Height | 0.50 cm |
| Weight | 2 g |
