Product details

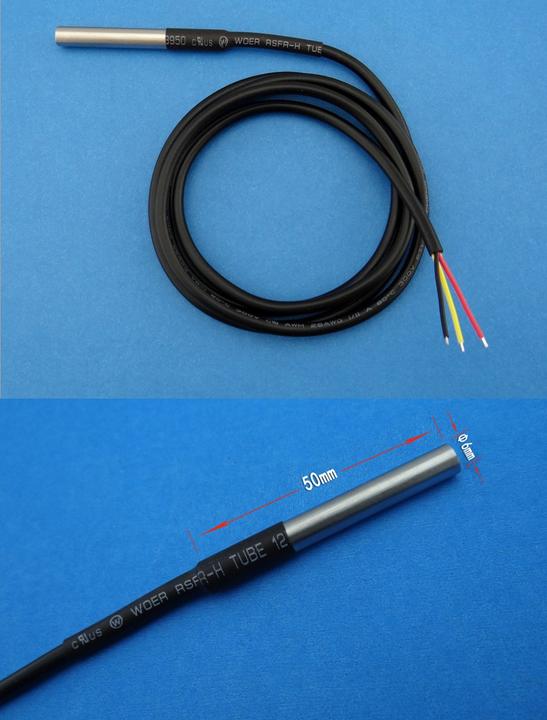

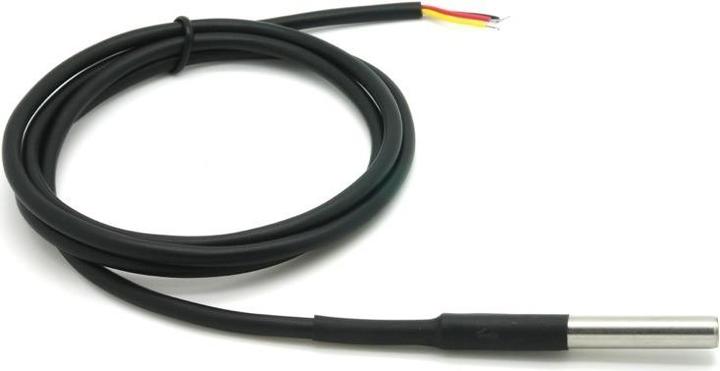

The DS18B20 is very well suited for outdoor or liquid measurements. The sensor itself is waterproof and can be easily separated from the rest of the electronics thanks to the 1-meter long cable. Connecting it to the microprocessor is very simple with OneWire: Red to 3.3 V or 5 V, Black to GND, Yellow to the desired IO, and additionally through a pull-up resistor (e.g., 4.7 k) to 5 V - done.
The sensor can measure temperatures from -55 to +125 degrees, with an accuracy of 0.5 degrees (in the range of -10 to +85 degrees).
Sensors | Temperature sensor |
Scope of delivery | incl. connection cable 1m |
Compatible hardware | Arduino |
Item number | 8029508 |
Manufacturer | OEM |
Category | Electronics modules |
Manufacturer no. | P00001740 |
Release date | 16.6.2017 |
Compatible hardware | Arduino |
Module type | Sensor |
Sensors | Temperature sensor |
CO₂-Emission | |
Climate contribution |
Scope of delivery | incl. connection cable 1m |
Length | 6 mm |
Width | 6 mm |
Height | 50 mm |
Weight | 5 g |
Length | 15 cm |
Width | 5.50 cm |
Height | 1 cm |
Weight | 20 g |
