OEM 7-Segment Display Red Com. Cathode 2 characters 14mm

Electronics kit
Save CHF2.25
Ratings
Delivered between Wed, 4.6. and Thu, 5.6.
More than 10 items in stock at supplier

Product details

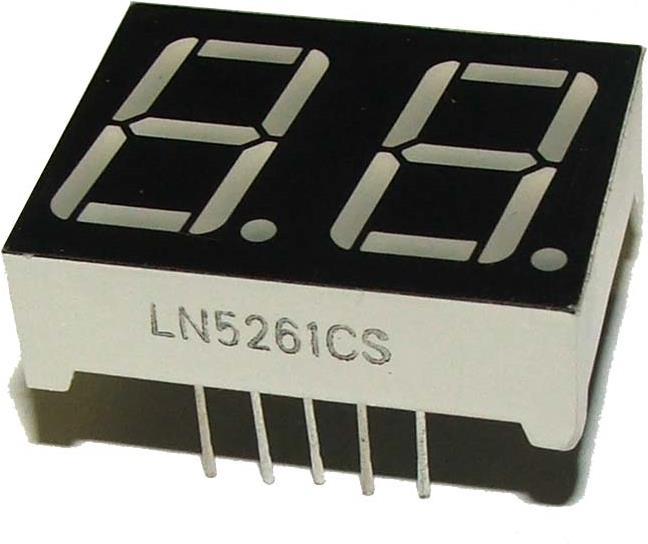

7-Segment Display Red Common Cathode 2 Digits, Character Height 14.2 mm (0.56")

A segment display is capable of representing letters, numbers, or symbols by electronically controlling individual or multiple segments. It is primarily used to display the decimal digits zero to nine. Additionally, a dot is often integrated to the right or left of the digit as a decimal point. This special segment is commonly referred to as dp for decimal point.

* 7 segments with dot (= 8 segments)
* 2 digits
* Standard 10 Pin Layout
* Common Cathode
* Red LED
* Forward Voltage (Vf) = 1.8 V
* Forward Current (If) = 30 mA
* Reverse Current (Ir) = 10 µA
* Max. Luminous Intensity (Iv) = 12.7 mcd
* Wavelength = 648 nm
* Size 25.0 mm x 19.0 mm x 8 mm

For more data, please refer to the attached datasheet!.

Key specifications

Item number
5998245

General information

Manufacturer
OEM
Category
Electronics modules
Manufacturer no.
P00000490
Release date
28.4.2013

Electronic module properties

Module type
Electronics kit

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
8 mm
Width
14.20 mm
Height
8 mm

Package dimensions

Length
3.50 cm
Width
2.60 cm
Height
1.80 cm
Weight
4 g
