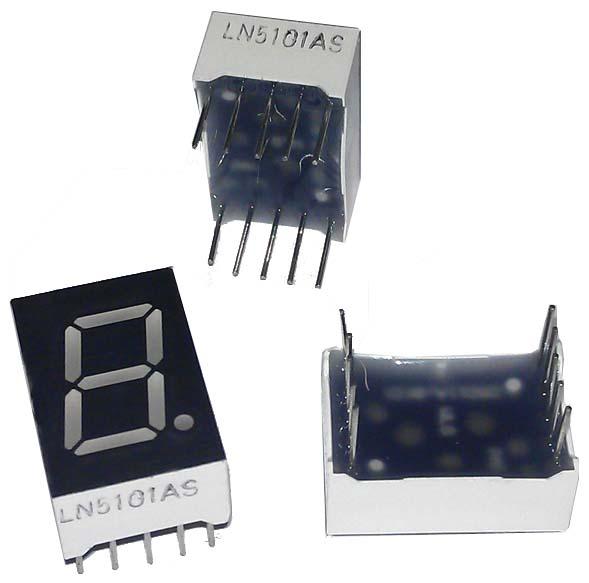

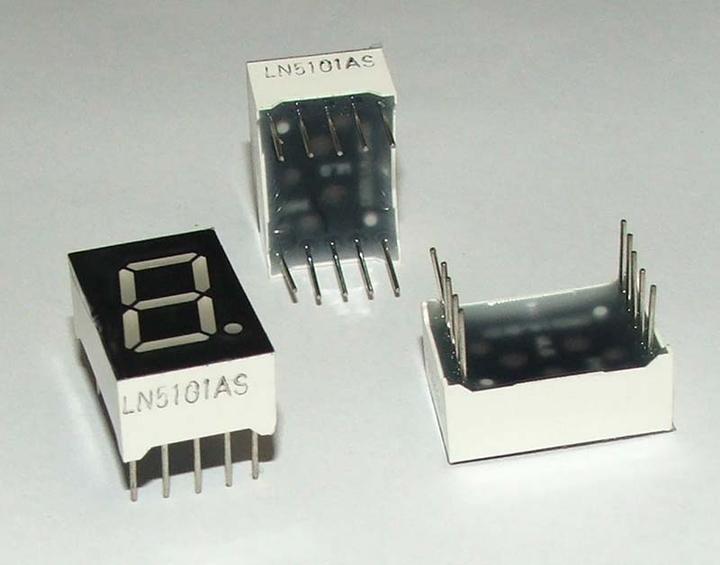

OEM 7-Segment Display Red Com. Cathode 1 character 12.7mm

7-segment display red common cathode, 1 character, character height 14.2 mm (0.56")

A segment display can display letters, numbers, or characters by electronic control, representing one or more of its segments. It is mainly used to represent decimal digits zero to nine. Additionally, a dot is often integrated on the right or left of the digit as a comma character, commonly referred to as dp for decimal point.

• 7 segments with dot (8 segments total)
• 1 character
• Standard 10 pin layout
• Common cathode
• Red LED
• Max forward voltage (Vf) = 1.8V
• Forward current (If) = 30mA
• Reverse current (Ir) = 10 µA
• Max luminous intensity (Iv) = 12.7 mcd
• Wavelength = 648 nm
• Size: 12.7 mm x 19.0 mm x 8 mm.
